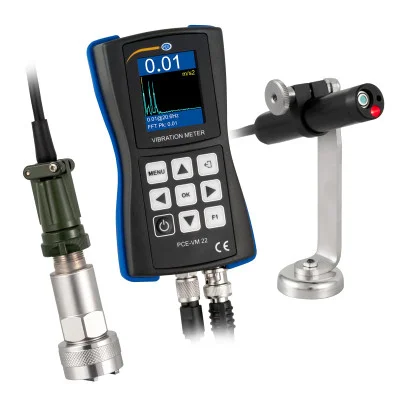

PCE Instruments Vibration Meter with FFT Analysis and Infrared Sensor (PCE-VM 22)

Description

PCE Instruments Vibration Meter (PCE-VM 22) is a professional tool for measuring machine vibrations with high accuracy. This vibration meter offers real-time FFT analysis, a waveform display, and an infrared temperature sensor to evaluate machinery conditions effectively. With a measuring range of 0 … 200 mm/s² for acceleration, it provides detailed insights for maintenance and troubleshooting.

Designed for industrial applications, this device includes a magnetic holder, a micro USB interface, and a tachometer for contactless speed measurement.

• Specifications and Dimensions
  • Measuring Range: 0 … 200 mm/s² acceleration, 0 … 200 mm/s speed, 0 … 2000 µm displacement
  • Frequency Range: 1 … 10,000 Hz
  • FFT Analysis: 400, 800, 1600 lines
  • Infrared Temperature Range: -70 … 380 °C / -94 … 716 °F
  • Tachometer Speed Range: 10 … 200,000 RPM
  • Storage: 4 GB internal memory
  • Display: 128 x 160 pixels color LCD
  • Battery Life: Up to 8 hours
  • Dimensions: 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3 in
  • Weight: 150 g / 5.3 oz



• Key Features and Benefits
  • Real-time FFT analysis for advanced vibration monitoring
  • Integrated infrared sensor for temperature measurement
  • Waveform display for detailed analysis
  • Magnetic holder for easy attachment to curved surfaces
  • Contactless tachometer for precise speed measurements
  • 4 GB storage for long-term data logging
  • Micro USB interface for quick data transfer
  • Compact and durable design with a transport case included
