Description

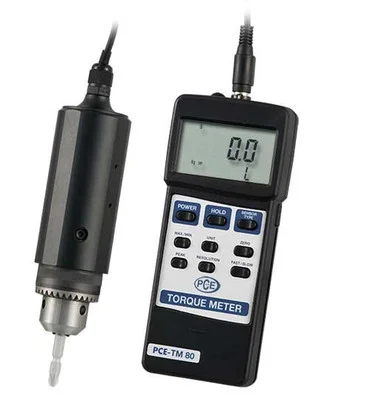

PCE Instruments Torque Meter (PCE-TM 80) is a reliable device designed to measure static and startup torque in screws, components, switches, and transmission shafts. Equipped with an external rotational torque sensor, it ensures precise torque readings in various applications.
This digital torque meter supports three units of measurement (Ncm, kgfcm, lbfin) and features a Peak-Hold function for capturing maximum torque values. The device includes an RS-232 digital output for data transfer, and with optional software, real-time measurements can be continuously logged for analysis.
- Specifications and Dimensions
- Measurement Range: 0 … 147.1 Ncm / 13.02 lbfin / 15 kgfcm
- Resolution (High): 0.1 Ncm / 0.01 lbfin / 0.01 kgfcm
- Resolution (Low): 1 Ncm / 0.1 lbfin / 0.1 kgfcm
- Accuracy: ±1.5 % + 5 digits
- Units of Measurement: Ncm, lbfin, kgfcm (default kgfcm)
- Peak-Hold Function: Yes
- Additional Functions: Data-Hold, Max/Min Values, Peak-Hold
- Overload Protection: Up to 150 %
- Display: LCD
- Output: RS-232 (optional software available)
- Operating Temperature: 0 … +50 ºC, below 80 % RH
- Power Supply: 9V battery
- Main Unit Weight: Approx. 225 g
- External Sensor Weight: Approx. 665 g
- Main Unit Dimensions: 180 x 72 x 32 mm
- External Sensor Dimensions: Ø 48 x 160 mm
- Key Features and Benefits
- Measures static and startup torque with high precision
- External torque sensor for accurate readings
- Supports three measurement units (Ncm, kgfcm, lbfin)
- Peak-Hold function to capture maximum torque values
- RS-232 digital output for easy data transfer
- Optional software available for real-time data logging
- Lightweight and portable with a durable plastic carrying case
- Includes
- 1 x PCE-TM 80 Torque Meter
- 1 x External Torque Sensor
- 1 x Chuck Key
- 1 x Plastic Carrying Case
- 1 x User Manual
