Description

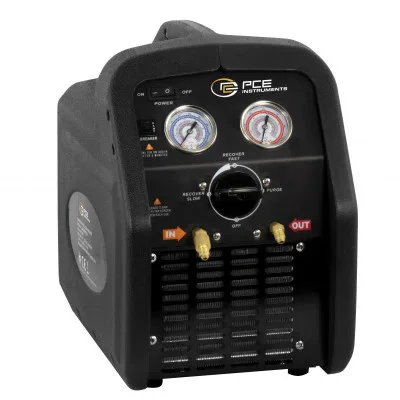

PCE Instruments Refrigerant Recovery Device (PCE-RRM 250) is designed for efficient and safe refrigerant recovery in HVAC systems. It operates with an inlet pressure of up to 38.5 bar, making it ideal for air conditioning maintenance, refrigeration technology, automotive industries, and environmental applications.
The built-in filter drier removes impurities and moisture, extending the lifespan of refrigeration systems. Its automatic shutoff function stops recovery when the pressure exceeds 38.5 bar, ensuring maximum safety during operation.
- Specifications and Dimensions
- Incoming Pressure: 0 … 38.5 bar
- Outgoing Pressure: 0 … 55 bar
- Flow Rate: Up to 2.2 kg/min for liquid refrigerant
- Vapor Extraction Rate: Up to 0.25 kg/min
- Refrigerants Supported: R12, R134a, R22, R401B, R402A, R404A, R407A, R410A, R507, and more
- Motor Power: 0.75 HP
- Compressor Type: Oil-free, air-cooled, piston
- Speed: 1,450 RPM
- Overload Protection: 8 A
- Connections: 1/4 inch SAE
- Power Supply: 110 … 220V AC | 50/60 Hz
- Protection Class: IP30
- Weight: 12.9 kg
- Dimensions (L x W x H): 400 x 250 x 360 mm
- Operating Conditions: 0 … 40°C, 20 … 85% r.H
- Key Features and Benefits
- High suction rate with a flow rate of up to 2.2 kg/min
- Automatic pressure shutoff for safe operation
- Oil-free, air-cooled compressor for maintenance-free performance
- Built-in filter drier removes contaminants and moisture
- Compact and lightweight for easy transport
- Adjustable recovery settings with user-friendly controls
- Compatible with a wide range of refrigerants
- Includes
- 1 x Refrigerant Recovery Device PCE-RRM 250
- 1 x Refrigerant Filter
- 1 x Filter Connection Hose
- 1 x Power Cable
- 1 x Operating Instructions
