Description

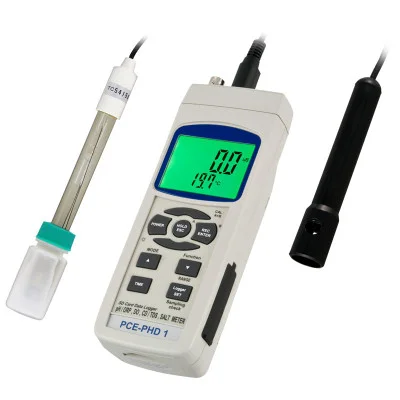

PCE Instruments Multifunction Water Quality Meter (PCE-PHD 1) is a versatile device designed for precise measurement of pH, conductivity, salinity, and temperature in various water samples. Its portable design and user-friendly interface make it suitable for both laboratory and field applications.
Equipped with automatic temperature compensation and real-time data logging capabilities, this meter provides accurate readings essential for water quality analysis. The device supports measurements of pH ranging from 0 to 14.0, conductivity from 0 to 200 µS/cm, and salinity up to 12% by weight, catering to a wide array of testing needs.
- Specifications and Dimensions
- pH Measurement Range: 0 to 14.0 pH
- pH Resolution: 0.01 pH
- pH Accuracy: ±0.02 pH + 2 digits
- Conductivity Measurement Range: 0 to 200 µS/cm, 0.2 to 2.0 mS/cm, 2 to 20.0 mS/cm, 20 to 200 mS/cm
- Conductivity Resolution: 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
- Conductivity Accuracy: ±2% of the measurement range + 1 digit
- Salinity Measurement Range: 0 to 12% by weight
- Salinity Resolution: 0.1%
- Salinity Accuracy: ±0.5% of the measurement range
- Temperature Measurement Range: 0 to 60°C (32 to 140°F)
- Temperature Resolution: 0.1°C
- Temperature Accuracy: ±0.8°C
- Display: Large LCD screen with adjustable measuring rate
- Memory: SD card support (1 to 16GB)
- Data Interface: RS-232 port for PC data transfer
- Power Supply: 6 x 1.5V AA batteries (optional power adapter available)
- Dimensions: 177 x 68 x 45 mm (7.0 x 2.7 x 1.8 inches)
- Weight: 490 g (1.1 lbs)
- Key Features and Benefits
- Measures pH, conductivity, salinity, and temperature
- Automatic temperature compensation for increased accuracy
- Real-time data logging with SD card storage (Excel format)
- RS-232 interface for easy data transfer
- Suitable for both laboratory and field applications
- Includes pH and conductivity electrodes
- Robust, compact, and easy to operate
