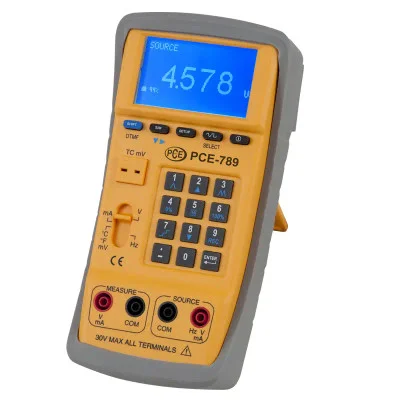

PCE Instruments Multifunction Process Calibrator with Data Logger (PCE-789)

Description

PCE Instruments Multifunction Process Calibrator (PCE-789) is an advanced measuring instrument designed for precise calibration of process signals. This versatile device measures and simulates current, voltage, and thermocouples, making it ideal for laboratory use, industrial applications, and maintenance tasks. The built-in function generator allows users to create custom waveforms for highly specific testing requirements.

The calibration tool with signal simulation can store measurement results for later analysis. The large graphical LCD with backlight ensures clear readability in various lighting conditions.

• Specifications and Dimensions
  • Current Simulation: -4 to 24 mA (1 µA resolution, ±0.03% accuracy)
  • Voltage Simulation: -3 to 15V (1 mV resolution, ±0.03% accuracy)
  • Thermocouple Compatibility: K, J, E, T, R, S, N, L, U, B, C
  • Frequency Range: 0.3 Hz to 20 kHz (0.1 Hz resolution, ±0.002 Hz accuracy)
  • Data Logging Function: Yes
  • Function Generator: Sine, triangle, square, and customizable waveforms
  • Display: Graphical LCD with backlight
  • Power Supply: Internal rechargeable battery or mains adapter
  • Battery Life: Long-lasting operation with efficient power management
  • Operating Temperature: 0 to 50°C (85% RH max)
  • Storage Temperature: -20 to 60°C (75% RH max)
  • Dimensions: 214.0 x 98.7 x 56.0 mm
  • Weight: 650 g



• Key Features and Benefits
  • Measures and simulates current, voltage, and thermocouples
  • Built-in function generator for waveform creation
  • Data logging capability for storing and reviewing calibration data
  • Large graphical LCD with backlight for easy readability
  • Battery operation for portable use in the field
  • Robust and durable design suitable for industrial environments
  • Comes with software and USB connectivity for data transfer

• Includes
  • 1 x PCE-789 Multifunction Process Calibrator
  • 1 x K-Type Thermocouple Adapter
  • 2 x Test Leads
  • 2 x Crocodile Clips
  • 1 x USB Cable
  • 1 x Software
  • 1 x Mains Adapter
  • 1 x Carrying Case
  • 1 x Instruction Manual
