Description

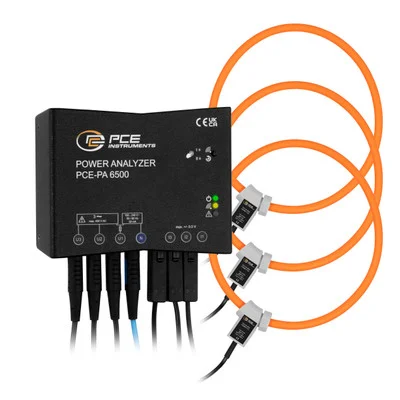

PCE Instruments Digital Power Meter (PCE-PA 6500 F150) is a high-performance power measurement device designed for real-time monitoring of electrical parameters. It accurately measures active, apparent, and reactive power using Rogowski coils or current transformers.
With built-in Wi-Fi connectivity, this digital power meter transmits real-time data to the measurement platform for historical analysis. The device features a 32GB internal memory, allowing CSV file storage for offline data recording. The included app enables remote access and monitoring for enhanced power management.
- Specifications and Dimensions
- AC Voltage Measurement Range: 40 … 400 V
- Resolution: 0.01 V / Accuracy: ±1% of Rd.
- AC Current Measurement Range: 3 … 4800 A
- Active Power Measurement Range: 120 W … 1920 kW
- Reactive Power Measurement Range: 120 VAR … 1920 kVAR
- Apparent Power Measurement Range: 120 VA … 1920 kVA
- Power Factor Measurement Range: 0 … 1
- Measuring Rate: 26000 Hz
- Storage Capacity: 32GB Internal Memory
- Storage Interval: Adjustable from 1 sec to 60 min
- Connectivity: Wi-Fi and BLE App Support
- Protection Class: IP40
- Power Supply: 100 … 240 V 50/60 Hz (+/- 10%)
- Weight: 202 g
- Operating Conditions: -5 … 40°C, 0 … 80% RH
- Dimensions: 123 x 96 x 36 mm
- Key Features and Benefits
- Measures active, apparent, and reactive power
- Wireless data transmission via Wi-Fi for real-time monitoring
- 32GB internal memory for offline storage and historical analysis
- CSV file export for detailed power analysis
- Remote access via app with BLE connectivity
- Compatible with Rogowski coils for accurate power measurement
- Easy integration into existing power distribution systems
- No additional mains connection required
- Includes
- 1 x PCE-PA 6500 F150 Power Indicator
- 4 x Test Leads (Blue, Brown, Black, Grey) 2m
- 3 x Rogowski Coils
- 3 x Magnetic Measuring Adaptors (6.6 mm)
- 1 x Blue Crocodile Clip
- 1 x User Manual
- 1 x Service Bag
