Description

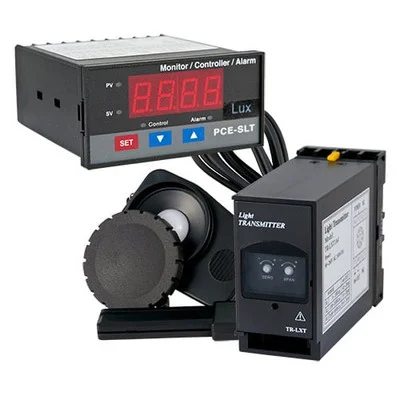

PCE Instruments Light Meter (PCE-LXT) is a professional lux monitoring system designed for continuous measurement in controlled environments. It features a high-precision sensor with a measuring range of 0 to 50,000 lux, making it suitable for photo labs, food storage, and pharmaceutical production.
The PCE Instruments Light Meter includes an analog 4-20 mA output for integration with external data loggers. Its digital display provides real-time illumination readings, and the alarm function can trigger visual or acoustic warnings. The system operates on 90-260V AC power, ensuring reliable performance in industrial settings.
- Specifications and Dimensions
- Measuring Range: 0 … 50,000 lux in three areas
- Resolution: 0.1 lx / 1 lx
- Accuracy: ±5 % of reading
- Sensor Type: Photo diode with color correction filter (C.I.E.)
- Power Supply: 90-260V AC
- Analog Output: 4 … 20 mA
- Alarm Output: Relay output (5 A / 240 VAC)
- Control Output: 3-point (Com, NO, NC)
- Operating Temperature: 0 … +50 °C (32 … 122 °F)
- Degree of Protection: IP54 (Transmitter), IP65 (Digital Display)
- Dimensions: Control panel cut-out 92 x 45 mm
- Weight: Approx. 250 g / 8.8 oz
- Key Features and Benefits
- Continuous light monitoring for production rooms and laboratories
- Relay output for controlling alarms, ventilation, or external devices
- Accurate sensor with ±5% reading accuracy
- 4-20 mA analog output for data logging and automation
- Programmable alarm function with acoustic and visual indicators
- Durable ABS plastic housing with IP54 and IP65 protection
- Ideal for food production, pharmaceutical storage, and controlled environments
