Description

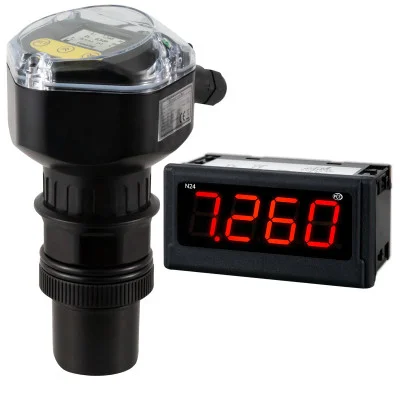

PCE Instruments Level Indicator (PCE-ULM-10-N24S) is a high-precision device designed for monitoring fill levels in silos and tanks. Equipped with a 4-20mA output signal, it seamlessly integrates into process control systems, allowing for automated monitoring and data collection.
With a measuring range of up to 10 meters (32.8 ft), it is ideal for monitoring large storage systems. The included external digital display (PCE-N24S) allows process signal evaluation and configuration via software, making it a versatile tool for industrial applications.
- Specifications and Dimensions
- Measuring Range: 0 to 10 m / 0 to 32.8 ft
- Accuracy: 0.5%
- Resolution: 0.001 m
- Minimum Distance to Wall: 1 m / 3.3 ft
- Temperature Display Resolution: 0.1°C
- Output Signal: 4-20mA
- Output Signal Resolution: 0.01mA
- Power Supply: 24V DC
- Protection Class: IP66
- Thread Type: M60 (connection), M18 x 1.5 (cable glands)
- Environmental Conditions: -20 to 60°C / -4 to 140°F
- Dimensions (L x W x H): 110 x 140 x 215 mm / 4.3 x 5.5 x 8.5 in
- Weight: Approx. 825 g / 1.8 lbs
- Key Features and Benefits
- Accurate level measurement with a 10m range
- Real-time monitoring with built-in display
- 4-20mA output for process control integration
- External digital display (PCE-N24S) for enhanced readability
- Configurable via software with PD14 programming adapter
- High IP66 protection against harsh environmental conditions
- Suitable for industrial applications and storage monitoring
- Includes
- 1 x Level Indicator (PCE-ULM-10-N24S)
- 1 x Built-in Display (PCE-N24S)
- 4 x Mounting Hardware
- 1 x Gasket
- 1 x Instruction Manual
