Description

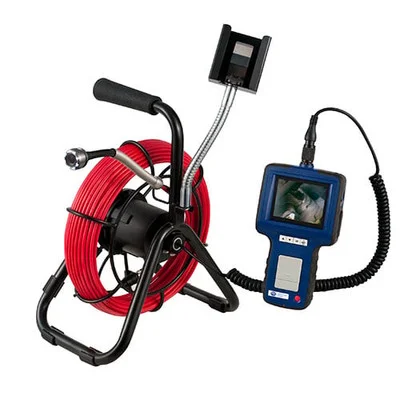

PCE Instruments Industrial Borescope (PCE-VE 380N) is a high-performance inspection tool designed for industrial diagnostics and maintenance. This borescope features a semi-flexible, waterproof push-pull cable with a length of 30 m, making it ideal for inspecting pipes, vents, and hard-to-reach machinery components.
The borescope includes an advanced CMOS image sensor, 8 bright LEDs for enhanced visibility, and a user-friendly 3.5-inch LCD display. With the ability to capture high-quality images and videos directly onto an SD memory card, this device provides efficient and precise inspections for a wide range of industrial applications.
- Specifications and Dimensions
- Cable Diameter: 28 mm / 1.11 in
- Cable Length: 30 m / 98 ft
- Depth of Field: 10 mm to infinity
- Field of View: 150.8°
- Bending Radius: 90 mm / 3.54 in
- Illumination: 8 LED lights
- Image Sensor: CMOS (640 x 480 resolution)
- Frame Rate: 30 frames per second (fps)
- Display: 88.9 mm / 3.5 in TFT LCD monitor
- Interface: Mini USB 1.1 / AV out
- Storage: 8 GB SD memory card (expandable to 32 GB)
- Compression Format: MPEG 4
- Picture Format: JPEG (640 x 480)
- Video Output Format: NTSC / PAL
- Video Format: ASF (320 x 240)
- Operating Temperature: -10 … 60°C / 14 … 140°F
- Power Supply: Rechargeable 3.7V lithium-ion battery
- Device Dimensions: 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
- Weight (Including Case): 9.98 kg / 22 lbs
- Protection Type (Camera): IP 68 – Dust-tight and waterproof up to 1.5 m / 4.92 ft
- Key Features and Benefits
- 30 m waterproof push-pull cable for deep inspections
- High-resolution CMOS camera with bright LED illumination
- Real-time video and image capture
- 3.5-inch LCD display for live monitoring
- Easy data storage on an 8GB SD memory card
- Ideal for industrial and mechanical inspections
- Durable carrying case for portability
