Description

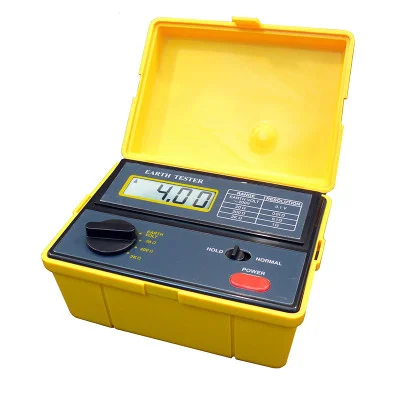

PCE Instruments Earth Tester (PCE-ET 3000) is a professional tool designed for measuring earth resistance and ground voltage in electrical installations. Featuring a three-wire measuring method, this meter ensures accurate readings for residential, commercial, and industrial applications.
The earth resistance tester is equipped with an LCD display, battery status indicator, and data hold functionality. It meets IEC-1010-1 safety standards and includes a full set of test leads, earth rods, and batteries for immediate use.
- Specifications and Dimensions
- Measuring Ranges: Earth resistance: 0 … 19.99 / 0 … 199 / 0 … 1999 Ω
- Resolution: 10 mΩ / 100 mΩ / 1 Ω
- Accuracy: ± 2% + 2 digits
- Voltage Measurement: AC 0 … 200 V (50/60 Hz)
- Lower Measurement Limit: 0.01 Ω
- Measurement Current: 2 mA RMS
- Response Time: Approx. 2.5 seconds
- Measurement Rate: Every 4 seconds
- Operating Frequency: 820 Hz
- Power Supply: 6 x 1.5V batteries
- Dimensions: 160 x 120 x 65 mm
- Weight: 560 g
- Standards Compliance: IEC 1010-1, EN 61010-1, DIN/VDE 0413
- Key Features and Benefits
- Three-wire earth resistance measurement for precise readings
- Battery-powered for field testing
- Meets IEC and VDE safety standards
- Includes test leads and earth rods for immediate use
- Includes
- 1 x Earth Tester PCE-ET 3000
- 1 x Test cable set (15 m red, 10 m yellow, 5 m green)
- 1 x Set of earth rods
- 6 x Batteries
- 1 x User manual
