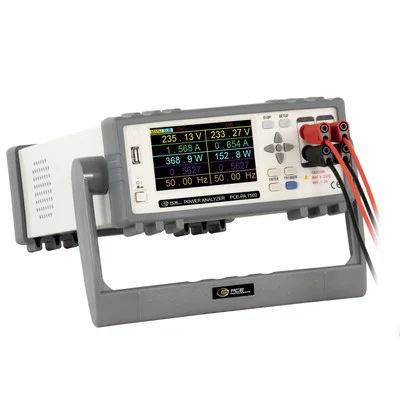

PCE Instruments Dual-Channel Power Analyzer (PCE-PA 7500)

Description

PCE Instruments Dual-Channel Power Analyzer (PCE-PA 7500) is designed for precise power measurement and analysis of electrical parameters, including voltage, current, power, and energy consumption. With dual input channels, it enables simultaneous monitoring of different electrical loads, making it ideal for laboratory and industrial applications.

The power analyzer provides real-time measurements on a 4.3-inch color display, offering clear and detailed visualization of electrical data. The integrated alarm function alerts users when preset power or current values are exceeded.

• Specifications and Dimensions
  • Power Measurement Range: 0.1 W … 5000 W
  • AC Voltage Measurement Range: 2 V … 250 V
  • AC Current Measurement Range: 0.001 A … 20 A
  • Power Factor Measurement Range: 0.001 … 1
  • Frequency Measurement Range: 10 … 100 Hz
  • Display Type: 4.3-inch TFT Color Display
  • Number of Measurement Channels: 2
  • Cable Length: 2 m
  • Protection Class: IP20
  • Weight: 2870 g / 6.3 lb
  • Device Dimensions: 355 x 265 x 110 mm
  • Operating Temperature: 0 … 40 °C
  • Storage Temperature: 0 … 55 °C



• Key Features and Benefits
  • Dual input channels for simultaneous power measurements
  • Measures AC voltage, AC current, power factor, and frequency
  • Color display for clear data visualization
  • Integrated alarm function for preset power and current thresholds
  • Accuracy of ±(0.4% of measured value + 0.1)
  • Includes safety measurement cables and shock-protected jacks
  • Compact and durable design for lab and industrial use

• Includes
  • 1 x Power Analyzer PCE-PA 7500
  • 2 x Safety Measurement Cables (2m Black)
  • 2 x Safety Measurement Cables (2m Red)
  • 1 x Power Cord
  • 1 x User Manual
