PCE Instruments Digital Pressure Gauge with Data Logger (PCE-PDA A100L)

Description

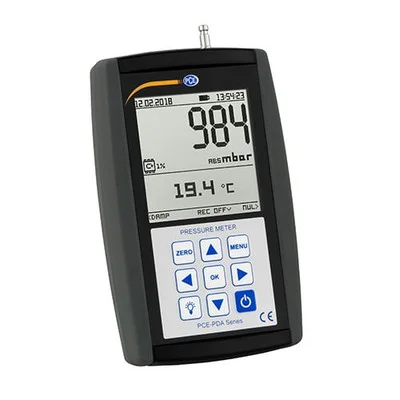

PCE Instruments Digital Pressure Gauge with Data Logger (PCE-PDA A100L) is a high-precision device designed to measure absolute pressure with a range of 0 to 200 kPa. This digital gauge is ideal for industrial, laboratory, and HVAC applications, offering multiple pressure units, a built-in data logger, and an easy-to-read graphic LCD.

The device features a quick coupling system for seamless pressure connection and can be powered by batteries or USB. With integrated temperature measurement and a high-precision mode, it delivers reliable and accurate readings.

• Specifications and Dimensions
  • Pressure Measuring Range: 0 … 200 kPa absolute
  • Resolution: 0.01 kPa, 0.1 kPa
  • Accuracy: < ± 0.5% of measuring range
  • Nominal Pressure: 200 kPa
  • Overpressure: 200 kPa
  • Burst Pressure: 300 kPa
  • Media: Liquids, Air, Non-aggressive gases
  • Measurement Rate: 10 Hz
  • Measurement Units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
  • Pressure Type: Absolute pressure
  • Pressure Connections: 5 mm nipple for quick connectors
  • Data Logger: 1024 memory slots
  • Recording Time: 1 s … 255 h per memory location
  • Recording Interval: 1 s … 24 h
  • Zero Correction: Yes, with a zero key
  • Display: Graphic LCD with backlight
  • Protection Class: IP41
  • Power Supply: 2 x 1.5V AA batteries or 5V USB power adapter
  • Operating Temperature: 0 … 50°C / 32 … 122°F
  • Storage Temperature: 10 … 55°C / 50 … 131°F
  • Dimensions: 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
  • Weight: Approx. 285 g / < 1 lb



• Key Features and Benefits
  • High-precision absolute pressure measurement
  • Multiple pressure units for flexible application
  • Graphic LCD with backlight for easy readability
  • Built-in data logger with up to 1024 memory slots
  • USB interface for power supply and data transfer
  • Max, Min, and Hold functions for real-time monitoring
  • Quick coupling system for seamless pressure connection
  • Integrated temperature measurement for additional functionality

• Includes
  • 1 x Pressure Gauge PCE-PDA A100L
  • 2 x 1.2V AA NiMh Batteries
  • 1 x USB Power Adapter
  • 1 x Micro USB Cable
  • 1 x User Manual
