Description
PCE Instruments Digital pH Meter Kit (PCE-228-Kit) is a complete solution for measuring pH, redox potential (ORP), and temperature in both laboratory and field settings. This kit includes a high-precision digital pH meter, a PE-03 electrode, a temperature sensor, an SD memory card, and a calibration solution, ensuring accurate and reliable results.
It features automatic three-point calibration, allowing users to maintain high measurement accuracy. With an integrated SD card slot, data is stored directly in Excel format for easy analysis.
- Specifications and Dimensions
- pH Measurement Range: 0.00 … 14.00 pH
- Redox Measurement Range: -1999 … 1999 mV (with optional ORP electrode)
- Temperature Measurement: 0.0 … 65.0 °C / 32 … 149 °F
- Resolution: 0.01 pH, 1 mV, 0.1°C
- Accuracy: ±(0.02 pH + 2 digits), ±(0.5% + 2 digits) mV, ±0.5°C
- Temperature Compensation: Automatic (0 – 65°C) or manual (0 – 100°C)
- Data Storage: SD card memory (1 – 16 GB, 2 GB included)
- Interface: RS-232 for PC connection
- Power Supply: 6 x 1.5V AA batteries or optional 9V adapter
- Operating Temperature: 0 … 50°C / 32 … 122°F
- Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
- Weight: 490 g / 1.1 lb
- Key Features and Benefits
- Complete kit includes pH meter, electrode, calibration solution, and SD card
- Stores data directly onto an SD card in Excel format for easy analysis
- Automatic three-point calibration ensures high measurement accuracy
- Large LCD display with easy-to-read pH, redox, and temperature values

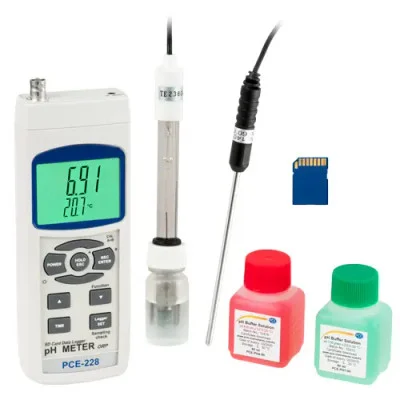

- Includes
- 1 x PCE-228 pH Meter
- 1 x PE-03 Electrode
- 1 x SD Memory Card (2 GB)
- 1 x Calibration Solution
- 1 x Stainless Steel Temperature Sensor
- 6 x AA Batteries
- 1 x Protective Carrying Case
- 1 x User Manual
