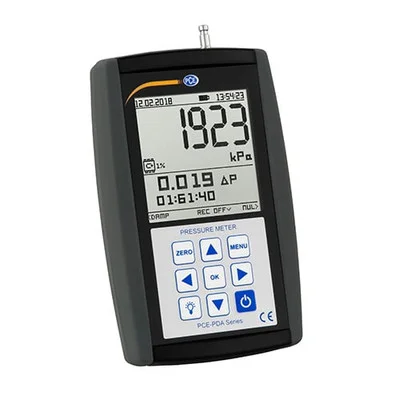

PCE Instruments Digital Manometer with Data Logger and USB Interface (PCE-PDA 1000L)

Description

PCE Instruments Digital Manometer (PCE-PDA 1000L) is a high-precision digital device designed for measuring relative pressure in industrial, laboratory, and HVAC applications. With a measuring range of -100 to 2000 kPa, this manometer provides accurate readings, data logging, and multiple measurement units for versatile use.

Equipped with a large graphic LCD, USB interface, and max/min hold functions, this digital manometer ensures easy operation and reliable performance. It features a quick coupling connection, making it suitable for measuring air, liquids, and non-explosive gases in a variety of settings.

• Specifications and Dimensions
  • Pressure Measuring Range: -100 … 2000 kPa
  • Resolution: 0.01 kPa, 0.1 kPa
  • Accuracy: < ± 0.5% of measuring range
  • Nominal Pressure: 2000 kPa
  • Overpressure: 2000 kPa
  • Burst Pressure: 3000 kPa
  • Media: Air, Liquids, Non-explosive gases
  • Measurement Rate: 10 Hz
  • Measurement Units: Pa, hPa, kPa, MPa, mbar, bar, ATM, kg/cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
  • Principle: Relative pressure
  • Pressure Connections: 5 mm (0.2 in) nipple for quick connection
  • Data Logger: 1024 memory slots
  • Recording Time: 1 s … 255 h per memory location
  • Recording Interval: 1 s … 24 h
  • Zero Correction: Yes, with a zero key
  • Display: Graphic LCD with backlight
  • Protection Class: IP41
  • Power Supply: 2 x 1.2V NiMh batteries or 5V USB power adapter
  • Operating Temperature: 0 … 50°C / 32 … 122°F
  • Storage Temperature: 10 … 55°C / 50 … 131°F
  • Dimensions: 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in
  • Weight: Approx. 285 g / < 1 lb



• Key Features and Benefits
  • Measures relative pressure with high accuracy and a wide range
  • Supports multiple measurement units for flexibility
  • Graphic LCD with backlight for clear data visualization
  • USB interface for easy data transfer and logging
  • Data logger with 1024 memory slots for long-term monitoring
  • Quick coupling connection for seamless setup
  • Leak test function to detect pressure changes in systems
  • Max, Min, and Hold functions for real-time data tracking

• Includes
  • 1 x PCE-PDA 1000L Manometer
  • 2 x 1.2V NiMh Batteries
  • 1 x USB Power Adapter
  • 1 x Micro USB Cable
  • 1 x User Manual
