Description

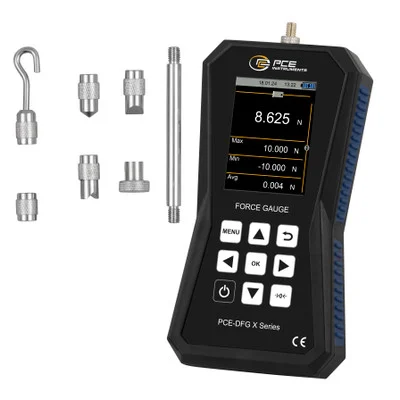

PCE Instruments Digital Force Gauge (PCE-DFG 10 X) is a precision measuring tool designed to measure both tensile and compressive forces with high accuracy. Ideal for laboratory and industrial applications, it features a built-in measuring cell with a capacity of up to 10 N. The force gauge includes a USB-C interface, multiple alarm modes, and a high-resolution graphical LCD display.
The device is equipped with a 32GB internal memory, capable of storing up to 30 million measurement points. It also offers adjustable measurement rates between 1 to 7,200 Hz for versatile testing applications.
- Specifications and Dimensions
- Measuring range: 0 … 10 N
- Resolution: 0.005 N
- Accuracy: ± 0.05 % F.S.
- Display: 2.8-inch LCD with illumination
- Adjustable measurement rate: 1 … 7200 Hz
- Memory capacity: 32GB (stores 30 million measurement points)
- Power supply: USB 5V DC, 500 mA
- Operating time: 13 hours
- Weight: 255 g
- Dimensions: 165 x 85 x 32 mm
- Key Features and Benefits
- Measures tensile and compressive forces with high accuracy
- Graphical LCD display with real-time numerical and bar chart visualization
- USB-C interface for seamless data transfer
- Adjustable measurement rate for flexible testing
- Built-in data logger with internal memory storage
- Supports multiple measurement units (N, kg, lb, kN, Nm, etc.)
- Multiple alarm modes: Inside, Outside, Crack, Switch-off
- Compact and lightweight design for easy portability
- Calibration reminder to ensure consistent accuracy
