Description

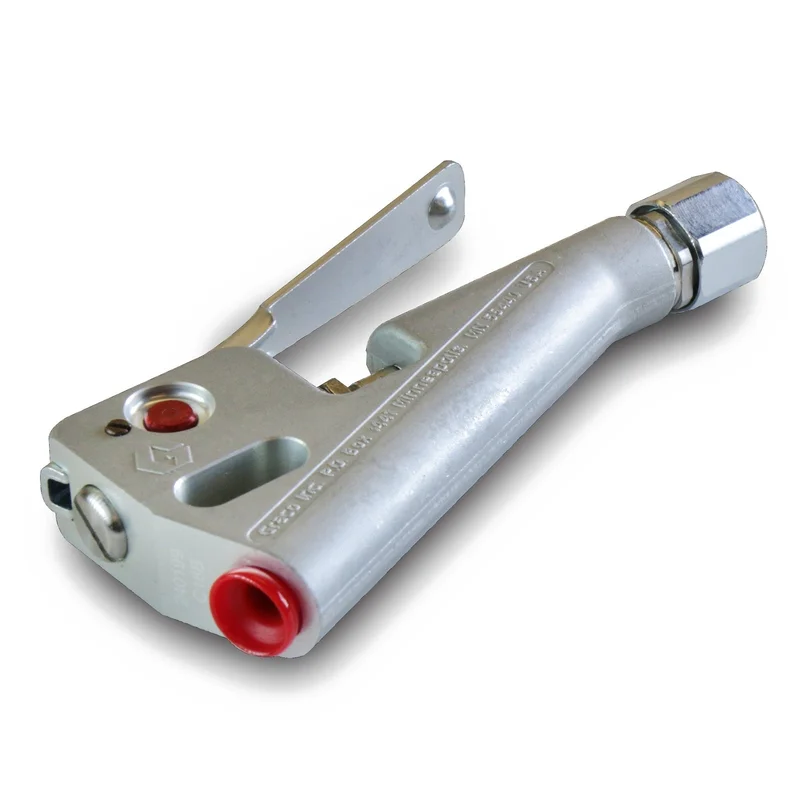

For precise control of low-viscosity sealants and adhesives
-
Handles:
- PVC sealers with glass or plastic filler
- Low to high abrasive fluids
- Waterborne or solventborne materials
- Most fluids up to 150,000 centipoise
- Well-suited for dispensing onto horizontal surfaces
- Selectable trigger lock and hanger slot for operator convenience
- Accepts flanged or threaded tips for a variety of dispensing needs
- Lowest trigger force and weight in its class
UPC Product: 00633955818200 Family Code: FAMAPA Unit of Measure: EA Height: 4 IN |10.16 CM Length: 4.5 IN |11.43 CM Width: 10.5 IN |26.67 CM Volume: .109 FT3 |.003 M3 Chargeable Weight: 1.139 LBS | 0.517 KG
Technical Specifications
| Type | Dispense Gun |
|---|---|
| Application | Bonding, Sealing, Gasketing, Potting, Encapsulation |
| Connection Type | Threaded, Flange |
| Gun Activation | Manual |
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Female |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 234 |
| Maximum Working Pressure (kg/cm²) | 239 |
| Maximum Working Pressure (kPa) | 23400 |
| Maximum Working Pressure (MPa) | 23.4 |
| Maximum Working Pressure (psi) | 3400 |
| Nozzle Size (cm) | 0.635 |
| Nozzle Size (in) | 0.25 |
| Number of Outputs | 1 |
| Weight (kg) | 0.33 |
| Weight (lb) | 0.725 |
| Model | Ultra-Lite |
