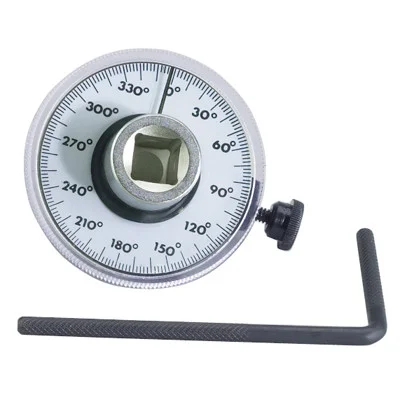

OTC 1/2″ Drive Torque Angle Gauge (4554)

Description

The OTC 1/2″ Drive Torque Angle Gauge (4554) is a precision tool designed to accurately measure the angle of rotation after a pre-set torque is applied to a fastener. This is crucial for servicing modern engines that utilize torque-to-yield fasteners, ensuring optimal performance and longevity.

KEY FEATURES AND BENEFITS:

• Accurate Angle Measurement: The 360° scale, marked in 2° increments, provides precise readings for accurate torque-angle tightening.
• Easy-to-Read Scale: Clear markings and intervals of 10° and 30° make it simple to read and interpret measurements.
• Quick Zeroing: Easily reset the gauge to zero for the next measurement, saving time and effort.
• Versatile Drive Sizes: 1/2″ male and female square drives ensure compatibility with various tools and applications.

SPECIFICATIONS:

• Drive Size: 1/2″
• Measurement System: Inch
• Scale: 360° scale marked in 2° increments and intervals of 10° and 30°
• Zeroing: Easily zeroed for next application by turning the tool housing
• Drives: 1/2″ male and female square drives

HOW TO USE:

1. Attach the Gauge: Connect the gauge to the appropriate drive tool, ensuring a secure fit.
2. Apply Torque: Use a torque wrench to apply the specified torque to the fastener.
3. Read the Angle: Once the torque is reached, read the angle of rotation on the gauge’s 360° scale.
4. Zero the Gauge: Turn the tool housing to reset the gauge to zero for the next measurement.

BENEFITS OF USING OTC 1/2″ DRIVE TORQUE ANGLE GAUGE (4554):

• Prevent Over-Tightening: Ensures accurate torque-angle application, preventing damage to fasteners and engine components.
• Optimize Engine Performance: Proper torque-angle tightening promotes optimal engine performance and longevity.
• Professional-Grade Tool: Built to withstand demanding workshop conditions and deliver reliable results.
• Easy-to-Use Design: Simple operation and clear readings make it user-friendly for technicians of all skill levels.

FEATURES:

• Precise 360° Scale: For accurate angle readings.
• Durable Construction: Designed to withstand tough environments.
