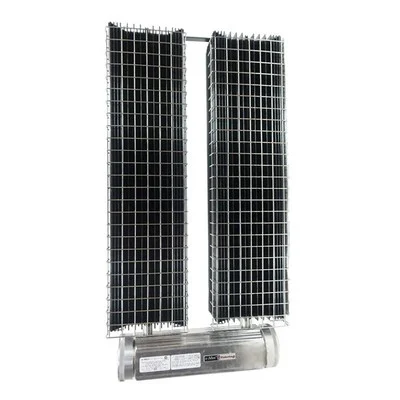

Norseman 2000W 480V T2D Convection Heater w/T‘stat (XB2-4200T2D71T)

Description

The Norseman 2000W 480V T2D Convection Heater w/T’stat (XB2-4200T2D71T) is a specialized heating solution engineered for safety and performance in hazardous industrial environments. This 2kW natural convection heater is designed to provide reliable warmth in locations where explosive gases, dusts, or fibers may be present, making it essential for a range of critical applications. Its robust construction and certified explosion-proof design ensure effective temperature control while meeting stringent safety standards.

KEY FEATURES AND BENEFITS:

• Explosion-Proof Certification: Approved for use in hazardous locations, including Class I, Division 1 & 2, Groups A, B, C & D; Class II, Division 1 & 2, Groups E, F, G; and Class III, Division 1 & 2, ensuring safety in environments with flammable materials.
• Natural Convection Heating: Operates without a fan, promoting quiet and consistent heat distribution through natural air circulation, which is beneficial in environments where fan-assisted heating may not be suitable.
• Integrated Thermostat: Features an externally adjustable thermostat for convenient temperature control, allowing users to set and maintain desired warmth levels efficiently.
• Durable Construction: Made with a unique copper-free aluminum extruded convector and patented x-Max® terminal housing, offering protection against corrosion and ensuring long-term operational reliability.
• Efficient Heat Transfer: Utilizes a large convector surface area with high-mass fins and a black anodized finish for optimal low-temperature heat transfer, maximizing heating efficiency.
• Simplified Installation: Incorporates a “Track and Trolley” wiring system and a slide-out terminal block trolley in the x-Max® housing, streamlining electrical connections and reducing installation time.
• Versatile Mounting Options: Supplied with dual-purpose brackets that allow for both wall or floor mounting, providing flexibility for placement within diverse industrial spaces.

SPECIFICATIONS:

• Model Number: XB2-4200T2D71T
• Power: 2000 Watts (2kW)
• Voltage: 480V
• Phase: Single Phase (1Ø)
• Amperage: 4.2 A
• Heat Output: 6,824 BTU/hour
• Temperature Code: T2D
• Height: 23.5 inches (59.69 cm)
• Width: 15.5 inches (39.37 cm)
• Depth: 8.5 inches (21.59 cm)
• Weight: 40 lbs
• Material: Aluminum (copper-free)
• Operating Temperature Range (Ambient): -40°F (-40°C) to 104°F (40°C)
• Certifications: cCSAus, CE/ATEX

HOW TO USE:

1. Mounting: Securely mount the heater to a wall or floor using the provided dual-purpose brackets, ensuring it is in a stable location within the hazardous area.
2. Electrical Connection: Carefully connect the 480V single-phase power supply to the heater’s “Track and Trolley” wiring system, utilizing the slide-out terminal block trolley for ease of wiring. All connections must comply with local electrical codes and safety regulations for hazardous environments.
3. Thermostat Adjustment: Locate the external thermostat. Rotate the dial to set the desired temperature for the area. The thermostat will automatically regulate the heater to maintain this set point.
4. Power On: Energize the electrical circuit connected to the heater. The unit will begin to generate heat through natural convection, circulating warm air within the space.
5. Monitoring: Periodically monitor the area’s temperature to ensure the heater is operating effectively and maintaining the desired climate.

BENEFITS OF USING NORSEMAN 2000W 480V T2D CONVECTION HEATER W/T’STAT (XB2-4200T2D71T):

• Provides essential heating in industrial settings where the presence of ignitable substances necessitates specialized explosion-proof equipment.
• Offers a safe and reliable heating solution that complies with rigorous international safety standards for hazardous locations.
• Contributes to worker comfort and the protection of sensitive equipment by maintaining optimal operating temperatures in critical environments.
• Reduces the risk of ignition in hazardous zones through its T2D temperature code and robust, non-sparking construction.
• Minimizes maintenance requirements due to its fan-less natural convection design and durable components.

FEATURES:

• Integrated wire guards for added safety.
• Black anodized convector surface for oxidation resistance.
• High-mass fins on the convector for enhanced heat dissipation.
• Patented x-Max® terminal housing design.
• Designed for both wall and floor mounting.
• External knob for thermostat adjustment.
• Suitable for both Class I (gases/vapors), Class II (dusts), and Class III (fibers) hazardous locations.
• Operates efficiently in a wide ambient temperature range.
