Description

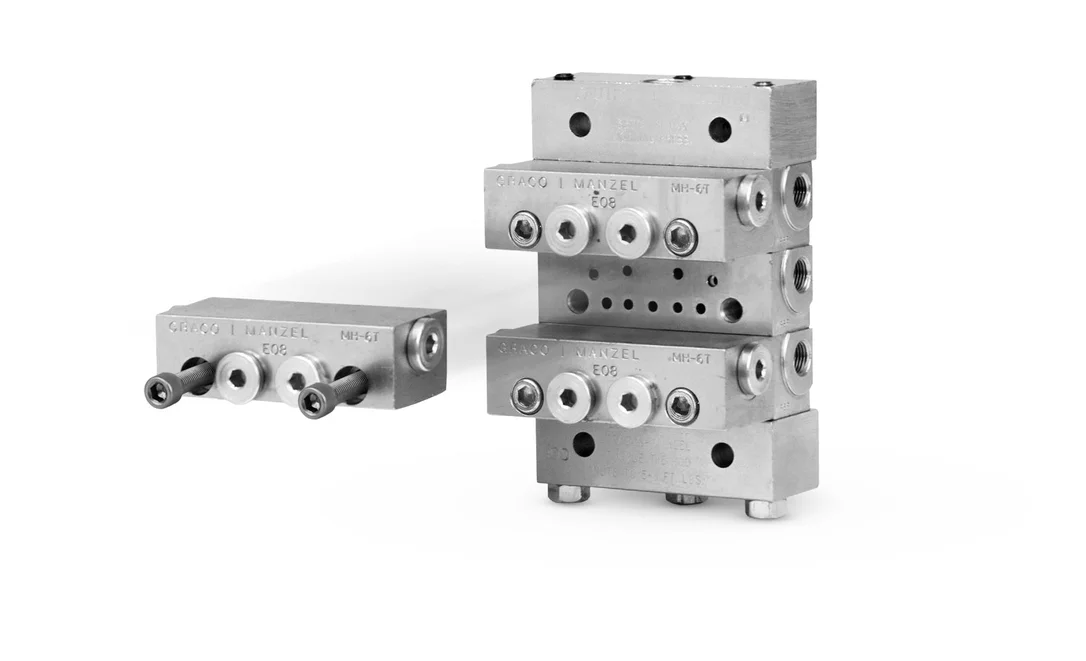

Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
For compressors, industrial equipment, and where high-pressure lubrication in required.
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
- Built-in outlet check valves ensure accurate lube delivery every time
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
UPC Product: 00633955578807 Family Code: FAMCPT Unit of Measure: EA Height: 1.2 IN |3.048 CM Length: 3.25 IN |8.255 CM Width: 6.75 IN |17.145 CM Volume: .015 FT3 |0 M3 Chargeable Weight: 4.73 LBS | 2.14 KG
Technical Specifications
| Maximum Working Pressure (psi) | 7500 |
|---|---|
| Inlet Thread Type | NPSF |
| Number of Outlets | 10 |
| Maximum Working Pressure (bar) | 517 |
| Outlet Thread Type | NPSF |
| Maximum Working Pressure (kPa) | 51700 |
| Maximum NLGI Grade | #2 |
| Material | Steel |
| Compatible Material | Oil, Grease |
| Type | Divider Valve |
| Divider Valve Series | MHH |
| Application | In-Plant Machinery, Compressor Equipment |
| Model | Manzel |
| Series | MHH |
| Discharge Per Piston Stroke (in³) | N/A |
