Description
-

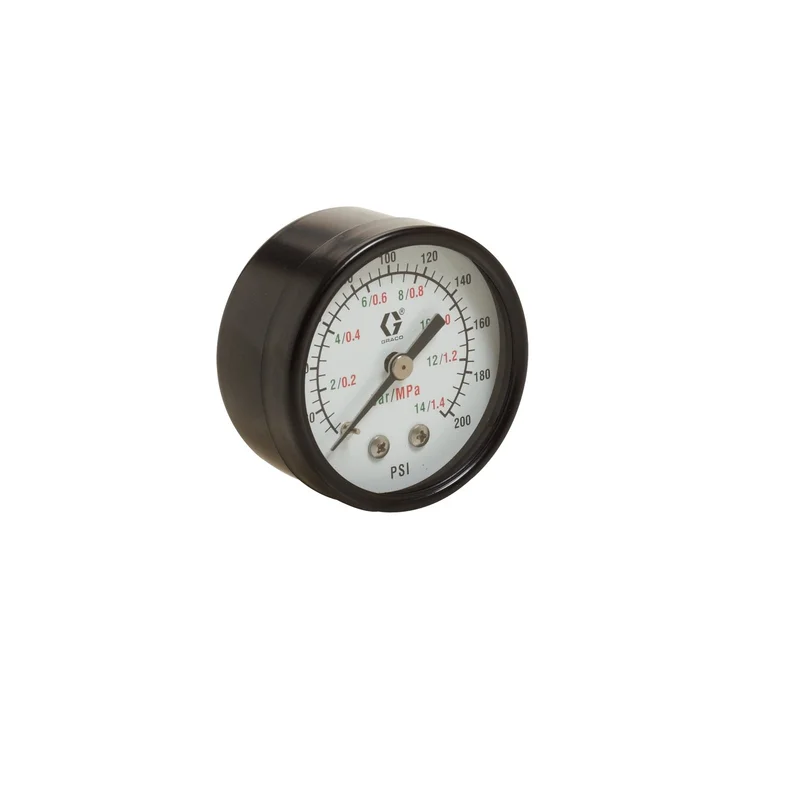

Low Pressure Air Gauges
- Black enamel case
- Back mount
- 1/8 in NPT and 1/4 in NPT connections
- Back mount
UPC Product: 00633955083288 Family Code: FAMQFP Unit of Measure: EA Height: 2.3 IN |5.842 CM Length: 2.25 IN |5.715 CM Width: 2.25 IN |5.715 CM Volume: .007 FT3 |0 M3 Chargeable Weight: .25 LBS | .11 KG
Technical Specifications
| Dial Diameter (cm) | 5 |
|---|---|
| Dial Diameter (in) | 2 |
| Dial Diameter (mm) | 51 |
| Inlet Size (cm) | 0.635 |
| Inlet Size (in) | 1/4 |
| Inlet Size (mm) | 6.35 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 14 |
| Maximum Working Pressure (kPa) | 1400 |
| Maximum Working Pressure (psi) | 200 |
| Type | Pressure Gauge |
| Maximum Working Pressure (MPa) | 1.4 |
