Description

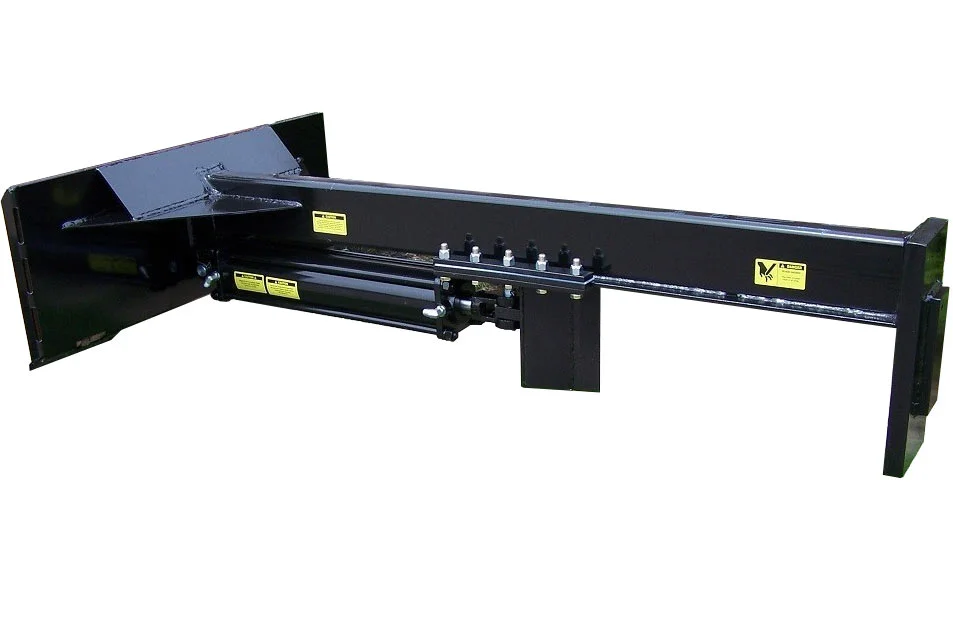

Our Upside down mounted log splitter attachment is great for splitting the extra large logs that you don’t want to even think about lifting. The heavy-duty splitting force and the sturdy design allow you to pick these large logs off the ground and split them without ever leaving your cab. One Year Warranty on all Parts.
| MODEL | 20 TON – 25″ | 30 TON -25″ | 30 TON – 30″ |
|---|---|---|---|
| Log Length Capacity | 25″ | 25″ | 30″ |
| Force (Tons) | 20 tons of ram force | 30 tons of ram force | 30 tons of ram force |
| Pressure | Up to 40,000 pounds of ram pressure |
Up to 60,000 pounds of ram pressure |
Up to 60,000 pounds of ram pressure |
| Cylinder | 4″ Cylinder has a 1 1/2″ Tail Rod with 24″ Ram Stroke |
5″ Cylinder has a 2″ Tail Rod with 24″ Ram Stroke |
5 ” Cylinder has a 2″ Tail Rod with 30″ Ram Stroke |
| Wedge Size | 8″ | 10″ | 10″ |
| Weight | 400 LBS | 500 LBS | 600 LBS |
| Minimum Flow (GPM) | 8 GPM | 13 GPM | 13 GPM |
