Description

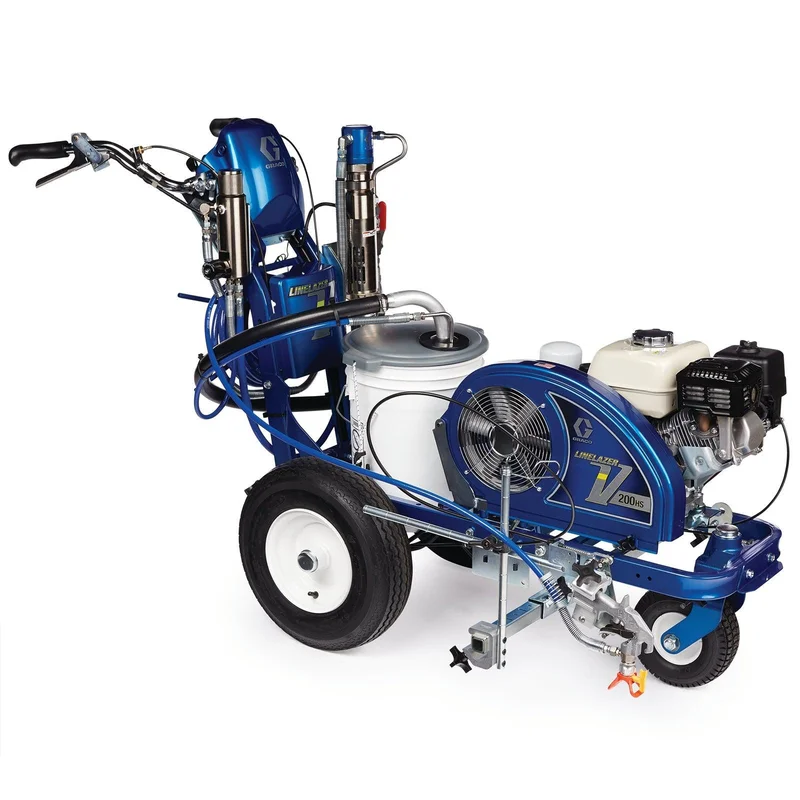

The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
UPC Product: 00755652320067Family Code: FAMLNSUnit of Measure: EAHeight: 51 IN |129.54 CMLength: 74 IN |187.96 CMWidth: 39 IN |99.06 CMVolume: 85.177 FT3 |2.412 M3Chargeable Weight: 886.663 LBS | 401.992 KG
Technical Specifications
| Compatible Surfaces | Pavement, Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX200 |
| Fuel Tank Capacity (gal) | 0.95 |
| Fuel Tank Capacity (L) | 3.6 |
| Gun Activation | Manual |
| Includes | 手动喷枪, 手動ガン, Manual Gun, Pistola manual, 수동 건 |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Flow Rate (L/min) | 8.14 |
| Maximum Sound Pressure Level (dB(A)) | 86.5 |
| Maximum Tip Size (cm) | 0.1194 |
| Maximum Tip Size (in) | 0.047 |
| Maximum Tip Size (mm) | 1.1938 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Pumps | 1 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3000 |
| Overall Length (cm) | 174.63 |
| Overall Length (in) | 68.75 |
| Overall Length (mm) | 1746.25 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 869.9500 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Pump Type | Endurance |
| Series | 200HS |
| Compatible Material | Road-Marking Paint |
| Weight (kg) | 139 |
| Weight (lb) | 306 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas Hydraulic |
| Product Series | HP Reflective |
