Description

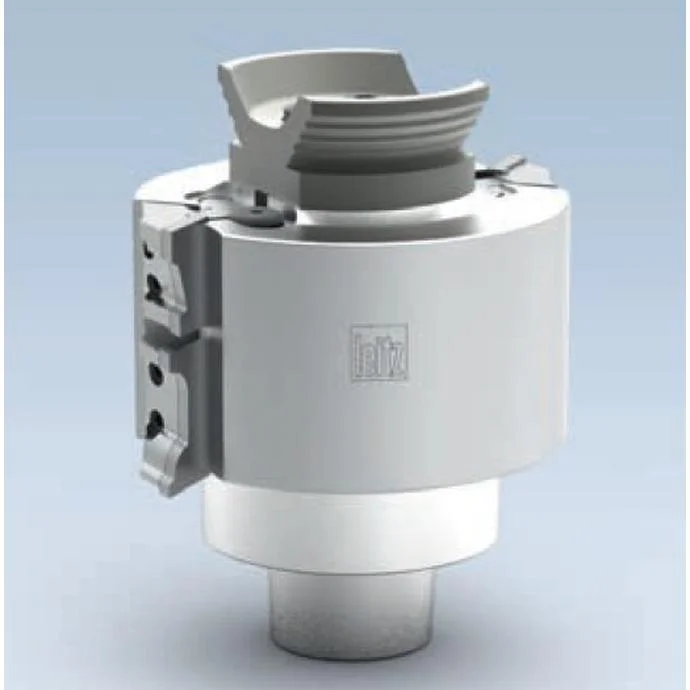

Profile cutterhead with 60°-serration, 1.6 mm pitch. Steel tool body with corrosion resistant surface protection. For blank knives with 8 – 10 mm knife thickness and 5 mm (see table) and 40 – 70 mm knife height, depending on the required profile depth. Integrated hydro clamping system with exchangeable clamping sleeves. Activated by a grease gun. Hydro profile cutterheads can only be used in combination with a clamping collar.
Application: Cutting of multi-purpose profiles with high feed speeds.
Machine: Four-sided moulders and profile machines.
Workpiece material: Softwood and hardwood.
Diameter: 6″
Cutting Width: 9.06″
Bore Diameter: 1.97″
For Knife Thickness: 8 – 10
No. of Teeth: 4
For: Profiling
Feed Type: Mechanical
Clamping Type: Mechanical Knife Clamping, Adjustable, Serrated
Max. RPM: 8800 RPM
