Description

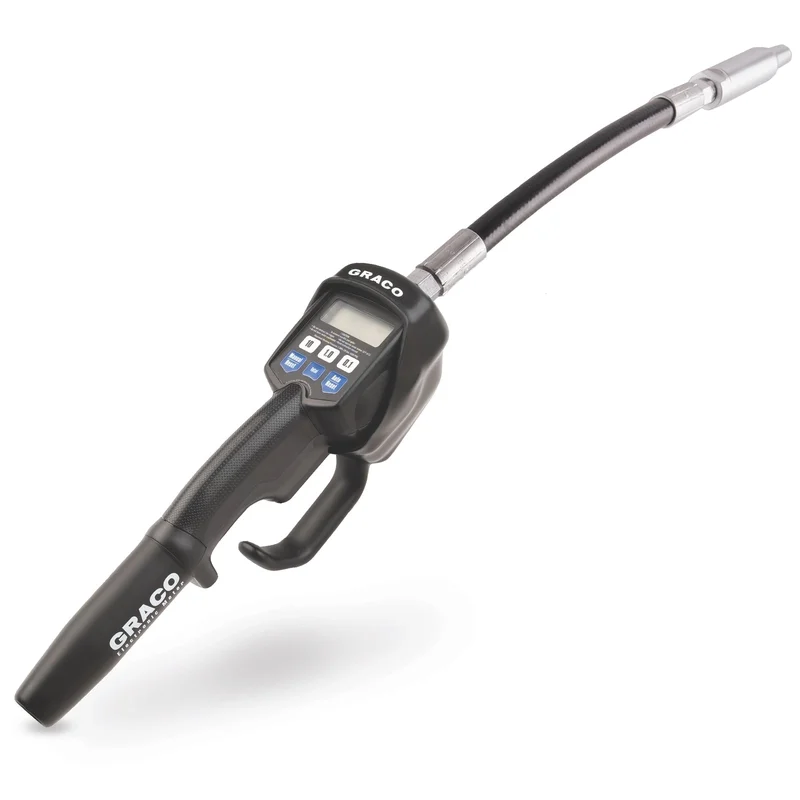

Graco’s LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
- Easy to read LCD screen keeps dispenses precise.
- Inlet 1/2 in. NPT with swivel.
- Rugged meter body is impact resistant for long life.
- Ergonomically-design, comfortable handle with two-finger trigger.
- Preset meter automatically shuts-off flow when preset quantity has been dispensed.
- 5 year warranty. See manufacturers website for details.
UPC Product: 00633955545434 Family Code: FAMMLD Unit of Measure: EA Height: 4.8 IN |12.192 CM Length: 14.4 IN |36.576 CM Width: 4.8 IN |12.192 CM Volume: .192 FT3 |.005 M3 Chargeable Weight: 5 LBS | 2.27 KG
Technical Specifications
| Approvals | CE |
|---|---|
| Compatible Material | Oil, Antifreeze |
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | 喷嘴，延长件, ノズル、エクステンション, Nozzle, Extension, Boquilla, extensión, 扳机护罩, トリガーガード, Trigger Guard, protector de gatillo, 旋转盖, スイベルカバー, Swivel Cover, cubierta giratoria |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | NPT |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Storage Temperature (°F) | 120 |
| Maximum Storage Temperature (°C) | 49 |
| Maximum Working Pressure (psi) | 1000 |
| Maximum Working Pressure (kPa) | 6900 |
| Maximum Working Pressure (bar) | 69 |
| Meter Accuracy (%) | ±0.5 |
| Overall Height (cm) | 8.3 |
| Overall Height (in) | 3.25 |
| Overall Height (mm) | 83 |
| Overall Length (cm) | 28 |
| Overall Length (in) | 11 |
| Overall Length (mm) | 280 |
| Overall Width (cm) | 8.3 |
| Overall Width (in) | 3.25 |
| Overall Width (mm) | 83 |
| Meter Technology | 椭圆齿轮, オーバルギア, Oval Gear, Engranaje oval |
| Metering Gun Weight (lb) | 3 |
| Metering Gun Weight (kg) | 1.36 |
| Wetted Material | Stainless Steel, Nitrile Rubber, Zinc, CS, LCP |
| Warranty | 结构组件为 5 年；电子元件为 2 年；耐用的零配件为 1 年, 5 年間の構造部品, 5 years Structural Components, 5 años para componentes estructurales, 2 年間の電子部品, 2 years Electronics, 2 años para electrónica, 1 年間の使用部品, 1 year Wear Parts, 1 año para piezas de desgaste |
| Unit of Measure | Pint, Quart, Gallon, Liter |
| Trigger Protection Type | Guard |
| Trigger Lock | Locking |
| Recommended Environment | Indoor |
| Outlet Thread Type | NPT |
| Outlet Size (cm) | 0.9525 |
| Outlet Size (mm) | 9.525 |
| Outlet Size (in) | 3/8 |
| Nozzle Type | Automatic |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Operating Temperature (°C) | 0 |
| Type | Electronic Metered Dispense Valve |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 6.9 |
| Model | LDP5 |
