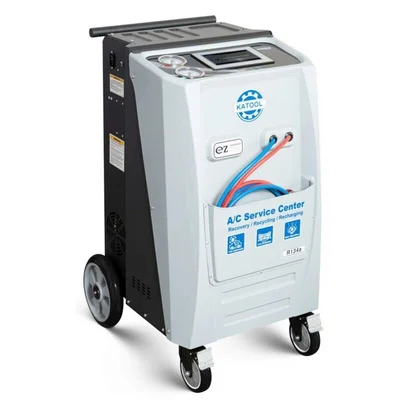

Katool USA Fully Automatic R-134A Recovery Recycle Recharge Machine (KT-AC1800) is designed for efficient and precise recovery, recycling, and recharging of R-134A refrigerant. This state-of-the-art machine features advanced technology to ensure top performance in all conditions.
The AC1800 machine operates with a high level of accuracy, ensuring a recovery performance of at least 95% in less than 30 minutes at 70-75°F. Its touch-screen display makes it user-friendly, while the built-in printer and SD database add to its functionality. The machine is equipped with a 1/3hp compressor and a dual-stage vacuum pump.
- Specifications and Dimensions
- Applicable Refrigerant Type: R134a
- Voltage: 110V AC, 60 Hz
- Recovery Performance (70-75°F): Min. 95% in less than 30min
- Charge Performance (70-75°F): ±0.5 oz (15 g)
- Operate Temperature Range: 41-122°F (5-50°C)
- Max Pressure: 18 bar
- Filter-Drier Capacity: 175 lbs (80kg), spin-on type
- Gas Loadcell Accuracy: 0.04oz/66lbs (1g/30kg)
- Oil Loadcell Accuracy: 0.04oz/66lbs (1g/30kg)
- Vacuum Transducer Accuracy: 1 mBar/1000mBar
- Recovering Speed: 39.7 lbs/h (18kg/h)
- Charge Speed: 2.2 lbs/min (1kg/min)
- Hose Length: 9.8’ (3m) SAE J2788
- Compressor: 1/3hp (246W), thermal protected, oiled, hermetically sealed
- Vacuum Pump: 3.6 CFM (120L/min), dual stage
- Display: 7” touch HQ
- Tank: 0.5 cubic feet (14.3L)
- Oil Bottle: 15 cubic inch (250mL)
- Packing Size: 22” x 28” x 41” (550x700x1050mm)
- Gross Weight: 240lb (110kg)
- Key Features and Benefits
- Fully automatic operation for ease of use
- High recovery performance with a minimum of 95% in under 30 minutes
- Accurate charge performance with a deviation of only ±0.5 oz
- Wide operating temperature range from 41°F to 122°F
- Durable and efficient compressor and vacuum pump
- Convenient 7″ touch screen display for easy control
- Includes a built-in printer for detailed reports
- Equipped with a high-quality hydraulic system
