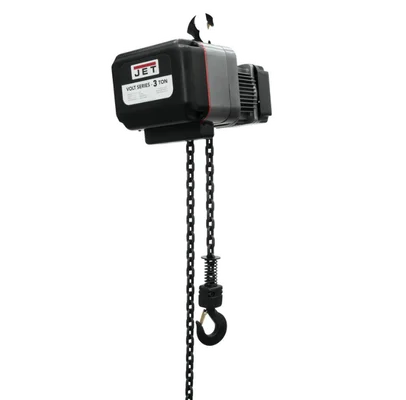

Jet VOLT 3 Ton 3PH 230V Electric Hoist w/20ft Lift (183230)

Description

The Jet VOLT 3 Ton 3PH 230V Electric Hoist w/20ft Lift (183230) is a powerful electric hoist designed for exceptional performance in harsh industrial environments. With its 3-ton capacity and patented variable speed technology, this hoist offers precise control over lifting operations, making it ideal for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Variable Speed Technology: Smooth and precise lifting with adjustable speeds to match specific applications.
• Built to Withstand the Toughest Jobs:
  • H4 Duty Rating: Handles demanding and continuous use.
  • 40% Duty Cycle: Can operate 24 minutes on and 36 minutes off per hour, with a maximum of 240 starts per hour.
• Safety Features You Can Rely On:
  • Overload Protection: Prevents lifting beyond the hoist’s capacity.
  • Electromagnetic Brake: Automatically secures the load during power interruptions.
  • Thermal Overload Protection: Safeguards the motor from overheating.
  • Grade 80 Black Oxide Coated Load Chain: Provides maximum strength and wear resistance.
• Additional Features for Enhanced Efficiency:
  • Soft Starts & Stops: Minimize wear on components.
  • Minimum Speed Setting: Allows for precise load lowering.
  • Heavy-Duty Nylon Chain Bag: Includes metal brackets for safe and organized storage.

SPECIFICATIONS:

• Capacity: 3 tons
• Lift Height: 20 ft
• Motor: 4 HP, 3-phase, 230V
• Load Chain: 11.2 x 34 mm, Single Fall
• Duty Cycle: H4 (40%)
• Lifting Speed: 0 – 24 ft/min (variable)
• Headroom: 23-3/4 in
• Weight: 286 lbs

HOW TO USE:

Follow these steps to effectively use the Jet VOLT 3 Ton 3PH 230V Electric Hoist (183230):

• Ensure the hoist is securely installed and positioned for the lifting task.
• Connect the hoist to a suitable 230V, 3-phase power supply.
• Use the control pendant to operate the hoist, adjusting lifting speed as needed.
• Monitor the load throughout the operation and adhere to safety regulations.

BENEFITS OF USING Jet VOLT 3 Ton 3PH 230V Electric Hoist w/20ft Lift (183230):

• Precise Control: Variable speed technology ensures accurate and controlled lifting.
• Enhanced Safety: Comprehensive safety features protect both operators and equipment.
• Durable Construction: Built to withstand tough industrial environments for reliable performance.

FEATURES:

• Robust Performance: Handles heavy loads efficiently.
• Variable Speed Control: Allows for precise lifting operations.
• Comprehensive Safety Features: Includes overload protection and thermal safeguards.
