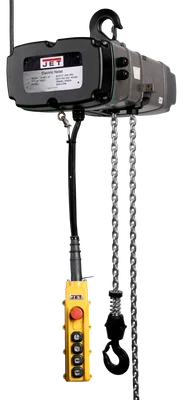

Jet TS500-015 3PH 5-Ton Electric Hoist w/ 15‘ Lift (140128)

Description

The Jet TS500-015 3PH 5-Ton Electric Hoist w/ 15′ Lift (140128) is a heavy-duty lifting equipment designed for industrial use. This model, the 140128 TS500-015, offers a lifting capacity of 5 tons and a maximum lift height of 15 feet. Built with safety, durability, and efficiency in mind, this hoist is a reliable tool for various industrial tasks.

KEY FEATURES AND BENEFITS:

• Safety: Equipped with a 2-in-1 mechanical brake and overload protection system, a DC motor brake for power failures, and a patented gear limit switch to prevent over-lifting or lowering.
• Efficiency: Features a two-speed motor for precise control and faster lifting/lowering, and a 5-pocket chain sprocket for smooth operation and reduced chain wear.
• Durability: Built with an IP55 TEFC motor with Class F insulation for reliable performance in harsh environments, and includes built-in heat protection to extend product life.
• Convenience: Comes with a waterproof, insulated, and impact-resistant pendant control for easy operation.

SPECIFICATIONS:

• Capacity: 5 tons (11,000 lbs)
• Lift Height: 15 feet
• Lifting Speed: 13/3 feet per minute
• Motor: 5 HP, 230V, 3PH
• Duty Cycle: 40/20
• Weight: 391 lbs
• Dimensions: 37″ x 27″ x 23″

HOW TO USE:

• Inspect the Hoist: Check for any visible damage to the hoist, chain, and control pendant.
• Connect to Power Source: Ensure the power supply is stable and correctly connected to the hoist.
• Attach Load: Securely hook the load to the hoist’s hook.
• Operate Controls: Use the pendant control to lift or lower the load. The hoist has two speeds: high for faster lifting and low for precise positioning.
• Release Load: Carefully lower the load to the desired position and release the hook.
• Disconnect Power: Turn off the power supply after use.

BENEFITS OF USING Jet TS500-015 3PH 5-Ton Electric Hoist w/ 15′ Lift (140128):

• Improved safety: The multiple safety features protect both the operator and the equipment.
• Increased efficiency: The two-speed motor and smooth operation enhance productivity.
• Durability: Built to withstand harsh working conditions.
• Precise control: The patented gear limit switch ensures accurate positioning.
• Convenience: Easy to operate with the waterproof pendant control.

FEATURES:

• Mechanical brake and overload protection
• Patented gear limit switch
• DC motor brake
• Two-speed motor
• IP55 TEFC motor with Class F insulation
• 5-pocket chain sprocket
• Waterproof pendant control
• Built-in heat protection
