Description

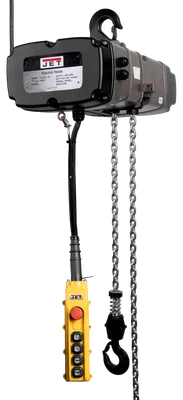

The Jet TS200-020 3PH 2-Ton Electric Hoist w/ 20′ Lift (140240) is a reliable 2-ton electric hoist designed for heavy-duty industrial use. Built with safety and efficiency in mind, this hoist offers a range of features to enhance performance and operator protection.
KEY FEATURES AND BENEFITS:
- Powerful and Efficient: Equipped with a 5 HP motor, the hoist delivers lifting speeds of up to 32 feet per minute for increased productivity.
- Safety First: The integrated mechanical brake and overload protection system safeguards both the operator and the hoist.
- Precise Control: Patented gear limit switch prevents overlifting and lowering, ensuring accurate positioning of loads.
- Durable Construction: IP55 TEFC motor and Class F insulation enable operation in harsh environments.
- User-Friendly: Two-speed operation and easy-to-use pendant control provide convenient handling.
SPECIFICATIONS:
- Capacity: 2 tons (4400 lbs)
- Lift Height: 20 feet
- Power Supply: 3-phase, 230V
- Motor: 5 HP
- Lifting Speeds: 32 and 8 feet per minute
- Duty Cycle: 40% intermittent, 20% continuous
- Dimensions: 37.008″ x 27.165″ x 23.622″
- Weight: 336 lbs
HOW TO USE:
- Inspect the hoist: Check for any visible damage before use.
- Connect to power: Ensure a secure connection to a 230V, 3-phase power supply.
- Attach load: Carefully hook the load to the hoist’s chain using the appropriate lifting gear.
- Operate pendant control: Use the up and down buttons to lift or lower the load.
- Monitor load: Continuously observe the load during lifting and lowering operations.
- Lower load: Gradually lower the load to the desired position.
- Disconnect power: Turn off the power supply after use.
BENEFITS OF USING JET TS200-020 3PH 2-TON ELECTRIC HOIST W/ 20′ LIFT (140240):
- Increased productivity: Through faster lifting speeds
- Enhanced operator safety: With multiple protection features
- Improved load control: With precise lifting and lowering
- Extended tool life: Due to durable construction
- Efficient operation: In demanding industrial conditions
FEATURES:
- Robust motor for heavy-duty applications
- Dual-speed operation for versatile lifting tasks
- Overcurrent protection for motor safety
- Thermal overload protection to prevent overheating
- Corrosion-resistant components for long-lasting performance
