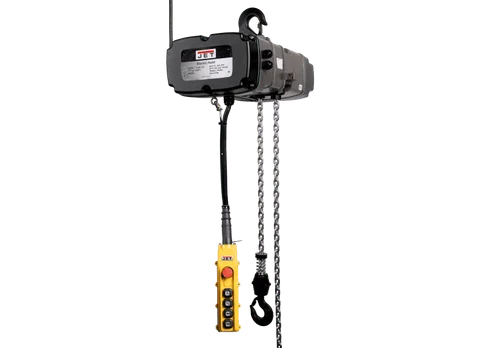

Jet TS100-010 460V 1-Ton Hoist w/Trolley & 4BTN PEND (144004K)

Description

The Jet TS100-010 460V 1-Ton Hoist w/Trolley & 4BTN PEND (144004K) is a reliable and powerful 1-ton electric hoist designed for efficient lifting tasks. Equipped with a trolley and a user-friendly 4-button pendant, this hoist offers precise control and safe operation.

KEY FEATURES AND BENEFITS

• Enhanced Safety: Mechanical brake, overload protection, and emergency brake ensure operator safety.
• Efficient Operation: Two-speed motor for versatile lifting speeds.
• Durable Construction: IP55 TEFC motor with Class F insulation for harsh environments.
• Precise Control: 4-button pendant for easy operation.
• Reliable Performance: Patented gear limit switch and built-in heat protection for long-term use.

SPECIFICATIONS

• Capacity: 1 ton (2200 lbs)
• Duty Cycle: 40%/20% (H4)
• Lift Height: 10 ft
• Lifting Speed: 26/7 ft/min
• Motor: 2HP, 460V, 3-phase
• Weight: 262 lbs
• Dimensions: 29.528 x 21.654 x 23.622 in
• Net Weight: 163 lbs (hoist only)
• Country of Origin: Taiwan

HOW TO USE

1. Inspect the Hoist: Check for any visible damage or wear and tear before use.
2. Attach the Load: Securely attach the load to the hoist hook.
3. Turn on Power: Connect the power supply cord and turn on the power switch.
4. Operate the Hoist: Use the up and down buttons on the pendant to lift or lower the load.
5. Lower the Load: Gently lower the load to the desired position.
6. Turn off Power: Turn off the power switch and disconnect the power supply cord.

BENEFITS OF USING JET TS100-010 460V 1-TON HOIST W/TROLLEY & 4BTN PEND (144004K)

• Increased Productivity: Efficiently lift heavy loads with ease.
• Improved Safety: Reduce the risk of injuries from manual lifting.
• Enhanced Precision: Accurately position loads with the two-speed motor.
• Durability: Built to withstand demanding work environments.
• Convenience: User-friendly pendant control for effortless operation.

FEATURES

• Mechanical Brake and Overload Protection: For enhanced safety.
• Patented Gear Limit Switch: For precise control.
• DC Motor Brake: Ensures power failure safety.
• Two-Speed Motor: For versatile lifting.
• IP55 TEFC Motor with Class F Insulation: For durability in harsh environments.
• 5 Pocket Chain Sprocket: Reduces vibration and extends chain life.
• IP65 Rated Pendant Control: For water-resistant operation.
• Built-in Heat Protection: For extended lifespan.
• 10 ft Power Supply Cord: Included for convenience.
