Description

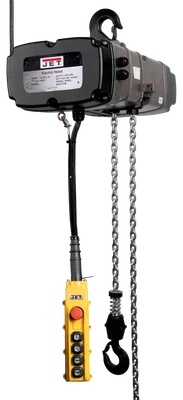

The Jet TS100-010 1-Ton Electric Hoist w/ Trolley & 4BTN PEND (140236K) is a reliable 1-ton electric chain hoist designed for heavy-duty industrial applications. This hoist is equipped with a trolley for horizontal movement and a user-friendly 4-button pendant control. Built with safety and efficiency in mind, it offers a range of features to enhance performance and operator protection.
KEY FEATURES AND BENEFITS
- Safe Operation: Equipped with mechanical brake, overload protection, gear limit switch, and DC motor brake for enhanced safety.
- Efficient Lifting: Dual speed motor allows for precise control and increased productivity.
- Durable Construction: IP55 TEFC motor and IP65 rated pendant control withstand harsh working conditions.
- Reliable Performance: 5-pocket chain sprocket reduces vibration and extends chain life.
- Thermal Protection: Built-in heat protection prevents overheating and damage to internal components.
SPECIFICATIONS
- Capacity: 1 ton (2200 lbs)
- Duty Cycle: 40/20% (H4)
- Lift Height: 10 ft
- Lifting Speed: 26/7 ft/min
- Motor: 2 HP, 230V, 3-phase
- Weight: 262 lbs
- Dimensions: 29.528″ x 21.654″ x 23.622″
HOW TO USE
- Inspect the Hoist: Check for any visible damage to the hoist, chain, and trolley before use.
- Attach the Load: Securely attach the load to the hoist hook using appropriate lifting gear.
- Turn on Power: Connect the power supply cord to a properly grounded outlet.
- Operate the Hoist: Use the pendant control to raise or lower the load. The up button raises the load, and the down button lowers it. The stop button halts the hoist.
- Lower the Load: Carefully lower the load to the desired position.
- Turn off Power: Disconnect the power supply cord after use.
BENEFITS OF USING JET TS100-010 1-TON ELECTRIC HOIST W/ TROLLEY & 4BTN PEND (140236K)
- Increased Productivity: Efficient lifting speeds and smooth operation enhance work efficiency.
- Improved Safety: Multiple safety features protect operators and equipment.
- Reduced Downtime: Durable construction and reliable performance minimize maintenance requirements.
- Versatile Applications: Suitable for various industrial lifting tasks.
FEATURES
- Mechanical Brake and Overload Protection: For enhanced safety.
- Patented Gear Limit Switch: For precise control.
- DC Motor Brake: Ensures power failure safety.
- Two-Speed Motor: For versatile lifting.
- IP55 TEFC Motor: For durability in harsh environments.
- IP65 Rated Pendant Control: For water-resistant operation.
- 5-Pocket Chain Sprocket: Reduces vibration and extends chain life.
- Built-in Heat Protection: For extended lifespan.
- 10 ft Power Supply Cord: Included for convenience.
