Description

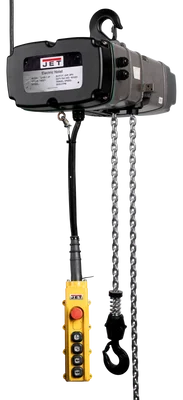

Jet TS050-020 1/2-Ton Electric Hoist w/Trolley & 4BTN PEND (140235K) is a reliable and powerful lifting tool designed for industrial applications. Built with safety and efficiency in mind, this hoist offers a range of features to ensure optimal performance and operator protection.
KEY FEATURES AND BENEFITS
- Safe lifting: Equipped with a 2-in-1 mechanical brake and overload protection, patented gear limit switch, and DC motor brake for enhanced safety.
- Efficient operation: Two-speed motor for precise control, IP55 TEFC motor for durability, and 5 pocket chain sprocket for smooth operation.
- Durable construction: Built with high-quality materials and designed for harsh environments.
- Easy to use: User-friendly pendant control with IP65 rating for water resistance.
- Overheat protection: Built-in heat protection prevents lifting when temperatures exceed 285°F.
SPECIFICATIONS
- Capacity: 1/2 ton (1100 lbs)
- Duty Cycle: 40/20 (H4)
- Lift: 20 ft
- Lifting Speed: 33/8 ft/min
- Motor: 1.5 HP, 230V, 3PH
- Weight: 224 lbs
- Headroom: 19-2/3 in
- Overall Width: 14-3/4 in
- Motor Current: 4/6.9 Amps
- Stock Number: JT-140235K
- Model Number: T050-230-020 KIT
- Dimensions:
- Length: 26.772 in
- Width: 29.528 in
- Height: 23.622 in
- Net Weight: 125 lbs
- Country of Origin: Taiwan
HOW TO USE
- Inspect: Inspect the hoist, trolley, and load for any damage before use.
- Connect: Connect the hoist to a properly grounded power supply.
- Attach: Attach the load to the hoist hook securely.
- Operate: Use the pendant control to raise or lower the load.
- Monitor: Monitor the load and hoist during operation.
- Lower: Lower the load gently and detach it from the hook.
- Disconnect: Disconnect the hoist from the power supply.
BENEFITS OF USING JET TS050-020 1/2-TON ELECTRIC HOIST W/TROLLEY & 4BTN PEND (140235K):
- Increased productivity: Efficient lifting and lowering increase productivity.
- Improved safety: Multiple safety features enhance safety.
- Reduced labor costs: Automating lifting tasks reduces labor costs.
- Durable construction: Long-lasting performance due to durable construction.
- Easy to operate and maintain: User-friendly operation and maintenance.
FEATURES
- Two-speed motor for versatile lifting applications
- Mechanical brake for added safety
- Overload protection to prevent equipment damage
- Patented gear limit switch for precise control
- DC motor brake for emergency stopping
- IP55 TEFC motor for harsh environments
- 5 pocket chain sprocket for smooth operation
- Pendant control with IP65 rating for water resistance
- Built-in heat protection for extended lifespan
