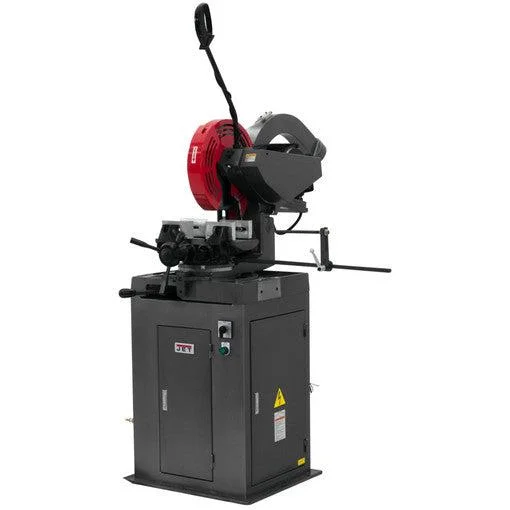

Jet 414207K
JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty
Jet 414207K Features
- 350mm (14″) Non-Ferrous High Speed Cold Saw
- Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
- Quick tension and release mitering capabilities with stops at 45° right, 45° left, and 90° (center), capable of slotting
- Two-piece blade guard system permits quick and easy blade changes without removing the guards
- Heavy-Duty cast iron frame base with easy access storage provides a stable cuting platform
- Double self centering vise with adjustable gibs secures the material for burr free cuts
- Flood style coolant with flow control system extends blade life
- 30″ adjustable length material stop
- High-Speed NF-350mm Blade included
Jet 414207K Specifications
| Tubing Rectangle at 45 Degrees (In.) | 3-1/2 x 3-1/2 |
| Blade Speeds (RPM) | 1750, 3500 |
| Solid Round at 45 Degrees (In.) | 2-1/2 |
| Overall Dimensions (L x W xH) (In.) | 25 x 52 x 73 |
| Weight (Lbs.) | 683 |
| Solid Square at 45 Degrees (In.) | 2-1/2 x 2-1/2 |
| Style (Type) | SV_1375591258784 |
| Blade Size (Mm.) | 350 x 32 x 3-2/5 |
| Maximum Vise Opening (In.) | 6 |
| Solid Rectangle at 90 Degrees (In.) | 3 x 3 |
| Tubing Round at 45 Degrees (In.) | 3-1/2 |
| Tubing Round at 90 Degrees (In.) | 4-1/2 |
| Solid Square at 90 Degrees (In.) | 3 x 3 |
| Tubing Rectangle at 90 Degrees (In.) | 5-1/2 x 3-3/4 |
| Solid Round at 90 Degrees (In.) | 3 |
| Tubing Square at 45 Degrees (In.) | 3-1/2 x 3-1/2 |
| Solid Rectangle at 45 Degrees (In.) | 2-1/2 x 2-1/2 |
| Tubing Square at 90 Degrees (In.) | 4-1/4 x 4-1/4 |
| Motor (HP) | 2 HP, 440V, 3Ph |
