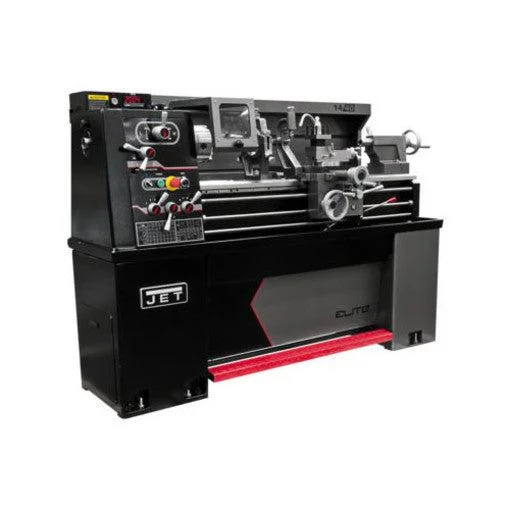

Jet 892472
EVS LATHES COMPACT. POWERFUL. PERFECTION. These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady & follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!
Jet 892472 Includes
- (1) E-1440VS w Newall DP700 DRO w Taper and Collet Closer
Jet 892472 Features
- Electromagnetic assisted foot brake for rapid braking Electromagnetic assisted foot brake for rapid braking
- Inverter drive system provides infinitely variable spindle speeds
- Steady and follow rest feature double sealed ball bearing guides for smooth material movements
- Chuck guards are standard equipment on all ELITE lathes for increased safety
- Front facing chip pan allows easy chip removal from the front of the machine
- 1-1/2″ Spindle Bore
- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
- Hardened and ground gears in headstock reduce vibration and deflection
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004
- Fully lit with CNC style lighting, the enclosed full length splash guard is expertly designed to contain all chips and coolant
Jet 892472 Specifications
| SAP Height | 60 |
| SAP Length | 76 |
| SAP Gross Weight | 1940 |
| SAP Net Weight | 1653 |
| SAP Volume | 97.639 |
| SAP Width | 37 |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Accessory 2 | Collet Closer |
| Weight | 1653 lbs |
| Follow Rest Capacity | 1/4″ – 2-3/8″ |
| Swing Through Gap | 20″ |
| Overall Dimensions (L x W x H) | 77″ x 30″ x 58″ |
| Range of Cross Feeds (IPR) | 0.0003 – 0.01 |
| Steady Rest Capacity | 1/4″ – 2-3/4″ |
| Spindle Bore | 1-1/2″ |
| Drive | EVS |
| Range of Inch Threads (TPI) | 4 – 112 |
| Digital Readout | Newall DP700 |
| Range of Spindle Speeds (RPM) | 0 – 2,200 |
| Spindle Taper with Sleeve | MT-5 |
