Description

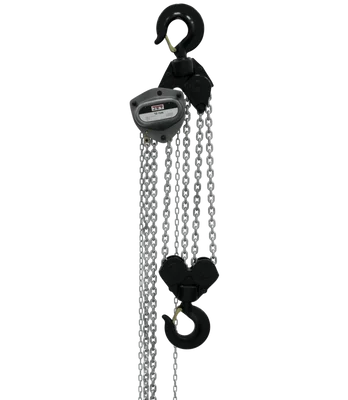

Jet L100-1000WO-20 10T Hoist 20ft Lift w/Overload Protection (209120) is a heavy-duty hand chain hoist ideal for demanding industrial environments. It boasts a 10-ton (22,000 lbs) lifting capacity and a maximum lift height of 20 feet, making it suitable for various lifting tasks.
KEY FEATURES AND BENEFITS:
- Safety First:
- Optional overload protection prevents exceeding the hoist’s capacity.
- Weston style double pawl brake ensures secure load control.
- Industrial-rated hooks rotate 360 degrees and stretch to indicate overloading.
- Built to Last:
- All-steel construction with heat-treated components provides exceptional durability.
- Grade 100 load chain offers 20% more strength than standard chains.
- Sealed ball bearings ensure smooth operation and minimize maintenance.
- Efficiency and Maneuverability:
- Lightweight design allows for easy operation in confined spaces.
- Compact body offers additional versatility in low headroom applications.
- Industry Standards Compliance: Meets OSHA, ANSI/ASME B30.16, and HST-2 standards for safe operation.
SPECIFICATIONS:
- Capacity: 10 tons (22,000 lbs)
- Lift Height: 20 feet
- Load Chain: Grade 100, 9 x 27 mm diameter
- Headroom: 29-7/8 inches
- Weight: 227 lbs
HOW TO USE:
- Secure the hoist: Attach the hoist to a secure overhead mounting point with a rated capacity exceeding the intended load.
- Inspect the hoist: Ensure the chain, hooks, and brake system are in good condition and free from damage.
- Position the load: Attach the load securely to the hoist hook using a rated sling or lifting attachment.
- Operate the hand chain: Pull the hand chain steadily to raise the load. The Weston brake automatically engages when you stop pulling, holding the load securely.
- Lower the load: Slowly release the brake by pushing the lever in the designated direction (refer to the user manual). Lower the load by paying out the hand chain steadily.
- Safety First: Never exceed the rated capacity of the hoist or lift personnel. Always follow safe lifting practices and refer to the user manual for detailed instructions.
BENEFITS OF USING Jet L100-1000WO-20 10T Hoist 20ft Lift w/Overload Protection (209120):
- Lifts heavy objects efficiently: Ideal for industrial applications requiring heavy lifting.
- Safe operation: Built-in safety features minimize the risk of accidents.
- Durable construction: Ensures long-lasting performance in harsh environments.
- Easy to use: Lightweight and compact design for maneuverability.
- Industry compliant: Meets stringent safety standards for safe lifting operations.
FEATURES:
- Optional overload protection
- Weston style double pawl brake
- Industrial-rated hooks with overload indication
- All-steel construction with powder coat finish
- Sealed ball bearings for smooth operation
- Grade 100 load chain for increased strength
- Compact and lightweight design
- Meets OSHA, ANSI/ASME B30.16, and HST-2 standards
