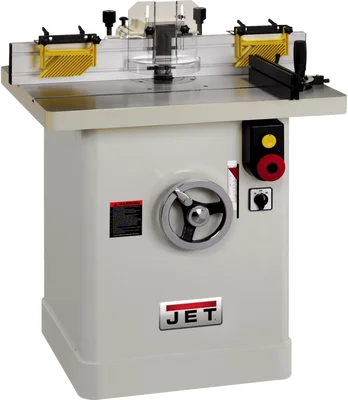

Jet JWS-35X3-1 230V 3HP 1PH Industrial Shaper (708323)

Description

The Jet JWS-35X3-1 230V 3HP 1PH Industrial Shaper (708323) is a heavy-duty machine built for professional woodworkers and serious hobbyists. This shaper boasts a powerful 3 HP motor that tackles even the most demanding cuts.

KEY FEATURES AND BENEFITS:

• Versatility: Four-speed spindle (4000, 6000, 8000, 10000 RPM) allows for precise control over cuts depending on material and cutter diameter.
• Precision: Large, precision-ground cast iron table (26-3/4” x 32-1/4”) offers a stable work surface. Independently adjustable fences with micro adjust ensure accurate positioning of your workpiece.
• Power & Control: 3 HP motor with magnetic controls delivers smooth operation. Poly-V belt maximizes power transfer to the spindle.
• Convenience: Extra-large chrome handwheel allows for fast and easy spindle height adjustments. Built-in 4″ dust port connects to any dust collection system (minimum 400 CFM required).
• Safety: Positive-detent spindle lock ensures secure cutter set-up. Reversible spindle expands the range of shaping jobs you can accomplish.

SPECIFICATIONS:

• Motor: 3 HP, Single Phase, 230V
• Spindle Speeds: 4000, 6000, 8000, 10000 RPM
• Table Size: 26-3/4” x 32-1/4”
• Dust Port: 4”
• Spindle Diameter: 1-1/4”
• Net Weight: 473 lbs

HOW TO USE:

1. Assembly: Refer to the user manual for detailed assembly instructions. Ensure the shaper is placed on a level and stable surface.
2. Setup: Install your desired cutter following the manufacturer’s recommendations. Adjust the spindle speed based on the material and cutter size.
3. Positioning: Secure your workpiece to the table using clamps and jigs for safety. Utilize the fence system for precise material positioning.
4. Shaping: Power on the shaper and carefully guide the workpiece against the spinning cutter to achieve your desired profile.
5. Dust Collection: Connect the dust port to a compatible dust collection system for a cleaner work environment.

BENEFITS OF USING Jet JWS-35X3-1 230V 3HP 1PH Industrial Shaper (708323):

• Professional Results: Achieve intricate cuts and detailed woodworking projects with ease and precision.
• Increased Efficiency: The powerful motor and variable speeds allow you to tackle challenging materials efficiently.
• Versatility: Handle a wide range of shaping tasks with the adjustable fences, reversible spindle, and multiple speed options.
• Safety Features: Magnetic controls and a spindle lock prioritize user safety during operation.
• Durable Construction: The cast iron table and heavy-duty construction ensure long-lasting performance.

FEATURES:

• 3 HP motor with magnetic controls
• Four-speed spindle (4000, 6000, 8000, 10000 RPM)
• Large cast iron table (26-3/4” x 32-1/4”)
• Independently adjustable fences with micro adjust
• Reversible spindle
• Poly-V belt
• Positive-detent spindle lock
• Extruded aluminum fence with T-slots and feather boards
• Starting pins for irregular shaping
• Extra-large chrome handwheel for spindle height adjustments
• 4″ dust port
