Description

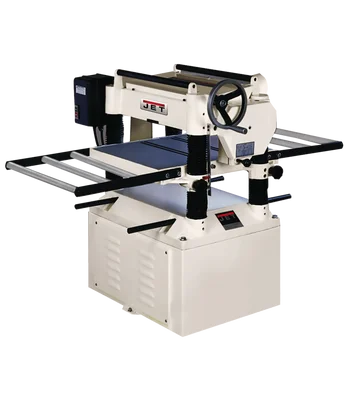

The Jet JWP-208-1 230V 3HP 1PH 20-Inch Planer (708528) is a robust 20-inch planer designed for professional woodworkers and serious hobbyists who prioritize precision, power, and durability in their tools. Built with heavy-duty cast iron and steel construction, this planer excels in handling tough woodworking projects effortlessly. Its powerful 3 HP motor ensures consistent performance, while the precision-ground table and adjustable cutting depth guarantee accurate results every time.
KEY FEATURES AND BENEFITS:
- Precision Cutting: Four high-speed steel cutter knives deliver 20,000 cuts per minute for exceptionally smooth and fast material removal.
- Durable Construction: Heavy-duty cast iron and steel components ensure long-lasting performance and minimal vibration.
- Adjustable Feed Rate: Two-speed gearbox with automatic chain tensioner allows customization of the feed rate for different wood types and projects.
- Precise Workpiece Support: Large, precision-ground cast iron table provides a stable surface for accurate planing.
- Powerful Motor: 3 HP TEFC induction motor with three V-belt transmission delivers consistent power for demanding tasks.
- Efficient Dust Collection: 5-inch dust port connects to your dust collection system for a cleaner work environment.
SPECIFICATIONS:
- Cuts Per Minute: 20,000
- Cutterhead Diameter: 3-3/16 inches
- Cutterhead Speed: 5,000 RPM
- Dust Collection (Minimum CFM Required): 400
- Dust Port Diameter (OD): 5 inches
- Feed Rate (FPM): 24 and 31
- Height: 43 inches
- Length: 29.5 inches
- Maximum Full Width Depth of Cut: 3/32 inches
- Maximum Planing Thickness: 6 inches
- Maximum Planing Width: 20 inches
- Minimum Planing Length: 6-3/4 inches
- Motor: 3 HP, 1Ph, 230V
- Net/Ship Weight: 765 pounds
- Number of Knives: 4
- Overall Dimensions: 26 x 36-5/8 x 41-3/8 inches
- Table Size: 25-3/4 x 20 inches
- Width: 37.5 inches
HOW TO USE:
- Preparation: Ensure the planer is properly set up and connected to a power source.
- Adjust Cutting Depth: Use the handwheel to set the desired cutting depth.
- Turn on Planer: Start the planer and let it reach full speed.
- Feed Workpiece: Feed the workpiece into the planer, keeping it flat against the table.
- Adjust Feed Rate (Optional): If needed, adjust the feed rate using the two-speed gearbox lever.
- Complete Planing: Continue feeding the workpiece until the entire surface is planed.
- Turn off Planer: Stop the planer and disconnect it from the power source.
BENEFITS OF USING THE Jet JWP-208-1 230V 3HP 1PH 20-Inch Planer (708528):
- Achieve professional-quality results on your woodworking projects.
- Improve efficiency and productivity with faster, smoother cutting.
- Ensure accurate and consistent planing with precise adjustments.
- Enjoy a cleaner and safer work environment with efficient dust collection.
FEATURES:
- Four high-speed steel cutter knives
- Two-speed gearbox with automatic chain tensioner
- Large, precision-ground cast iron table
- Powerful 3 HP TEFC induction motor
- 5-inch dust port
- 1/16 inch increment height scale
- Positive gear drive
- Built-in table rollers
- Anti-kickback fingers
