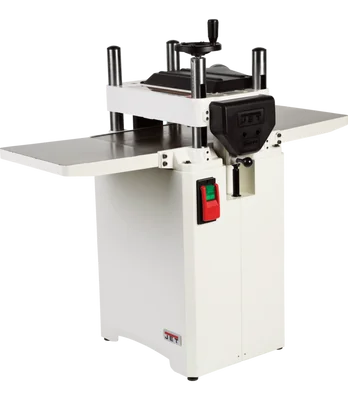

Jet JWP-15BHH 3HP 1PH 230V 15″ Helical Cutterhead Planer (722155)

Description

The Jet JWP-15BHH 3HP 1PH 230V 15″ Helical Cutterhead Planer (722155) is a powerful and efficient woodworking tool designed for professional-grade results. This planer features a helical cutterhead with 48 carbide knives, offering superior finish and reduced noise. It is built with heavy-duty construction, ensuring stability and precision for various planing tasks.

KEY FEATURES AND BENEFITS:

• Superior Finish & Reduced Noise: Helical cutterhead with 48 carbide knives for smooth results and quieter operation.
• Minimize Snipe: Innovative PASS system applies consistent pressure for clean cuts.
• Heavy-Duty Construction: Cast iron table and four-post design ensure stability and precision.
• Efficiency & Control: Dual infeed speeds (16/20 FPM) for material versatility and large cast iron tables for long boards.
• Powerful Performance: 3 HP motor tackles tough jobs and removes up to 1/8″ per pass with a maximum width of 15″.
• Clean Operation: 4″ dust port connects to dust collection systems for a cleaner workspace.

SPECIFICATIONS:

• Cutterhead Type: Helical
• Number of Knives: 48
• Maximum Depth of Cut: 1/8″
• Maximum Planing Width: 15″
• Maximum Planing Thickness: 6″
• Motor Power: 3 HP
• Table Size (with extensions): 15″ x 49.2″
• Dust Port Diameter: 4″

HOW TO USE:

1. Preparation: Ensure your workspace is well-ventilated and free of debris. Wear safety glasses, ear protection, and a dust mask. Secure your workpiece to a stable surface using clamps.
2. Adjustments: Set the desired cutting depth using the handwheel. Select the appropriate infeed speed (16 FPM for hardwoods, 20 FPM for softwoods) based on material type.
3. Planing: Power on the planer and let it reach full speed. Guide the board slowly and evenly through the machine, applying light pressure. Repeat passes for additional material removal until the desired thickness is achieved.
4. Dust Collection: Connect the dust port to a compatible dust collection system to minimize dust in your shop.
5. Power Down: Once finished, turn off the planer and unplug it before cleaning or making adjustments.

BENEFITS OF USING JET JWP-15BHH 3HP 1PH 230V 15″ HELICAL CUTTERHEAD PLANER (722155):

• Achieve professional-looking results with a superior finish and reduced noise.
• Minimize snipe for clean cuts and eliminate wasted material.
• Enjoy increased efficiency and control with dual feed rates and ample table space.
• Tackle demanding projects with the power to handle tough materials.
• Maintain a clean and healthy work environment with efficient dust collection.

FEATURES:

• Helical cutterhead with self-aligning carbide knives
• Precision Air Strut System (PASS) for snipe reduction
• Heavy-duty cast iron table and four-post design
• Dual infeed speed control (16/20 FPM)
• Large cast iron infeed/outfeed tables
• 3 HP motor
• Maximum depth of cut: 1/8″
• Maximum planing width: 15″
• 4″ dust port
