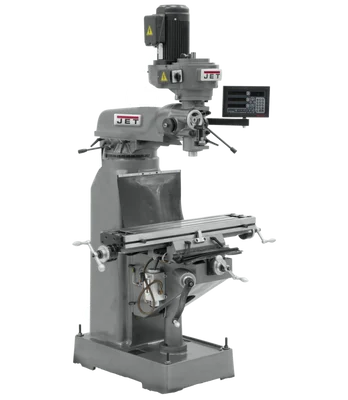

Jet JVM-836-3 Milling Machine with Newall DP700-DRO (691179)

Description

Jet JVM-836-3 Milling Machine with Newall DP700-DRO (691179) is a powerhouse of precision, designed to elevate your machining capabilities. Equipped with the advanced Newall DP700 digital readout system, this mill offers unmatched accuracy and ease of use for both professional machinists and dedicated hobbyists. Its robust construction and versatile features make it a valuable asset in tool and die shops, manufacturing facilities, and home workshops.

KEY FEATURES AND BENEFITS:

• Precision Machining: The precision-bored and honed milling head, along with the hardened and ground table, ensure exceptional accuracy and repeatability in your machining projects.
• Enhanced Accuracy: The Newall DP700 DRO provides precise measurements on the X and Y axes, simplifying complex setups and reducing the risk of errors.
• Ample Power: The 1.5 HP motor effortlessly handles a wide range of milling operations, from light-duty tasks to demanding projects.
• Versatility: The 90° head tilt and 10 variable spindle speeds (120-1550 RPM) give you the flexibility to tackle various materials and machining techniques.
• Durability: Built with heavy-duty components and featuring a one-shot lubrication system, this mill is designed for long-lasting performance and minimal maintenance.

SPECIFICATIONS:

• Motor: 1.5 HP, 230V, 3-phase
• Spindle Speeds: 10 (120-1550 RPM)
• Spindle Taper: R-8
• Table Size: 8″ x 36″
• Table Travel: Longitudinal: 22-1/4″, Cross: 9-1/2″
• Quill Travel: 5″
• Head Tilt: 90° left and right
• Overall Dimensions: 55″ L x 52″ W x 78″ H
• Weight: 1610 lbs

HOW TO USE:

1. Setup: Secure your workpiece to the table using appropriate clamps or fixtures.
2. Tooling: Install the desired milling cutter in the spindle and tighten securely.
3. Zeroing: Zero the X and Y axes using the DRO.
4. Speed and Feed: Select the appropriate spindle speed and feed rate for your material and cutter.
5. Operation: Begin milling, using the DRO to monitor and adjust tool position as needed.
6. Lubrication: Periodically lubricate the mill according to the manufacturer’s instructions.

BENEFITS OF USING THE Jet JVM-836-3 Milling Machine with Newall DP700-DRO (691179):

• Improved Accuracy: Achieve precise results with the Newall DP700 DRO.
• Increased Productivity: Complete milling tasks more efficiently with powerful performance and versatile features.
• Reduced Errors: Minimize mistakes with accurate measurements and simplified setups.
• Long-Term Reliability: Benefit from a durable construction and easy maintenance.

FEATURES:

• Precision-bored and honed milling head
• Hardened and ground table
• Newall DP700 DRO
• 1.5 HP motor
• 10 spindle speeds
• 90° head tilt
• One-shot lubrication system
• Way covers
• Tool box and tools
