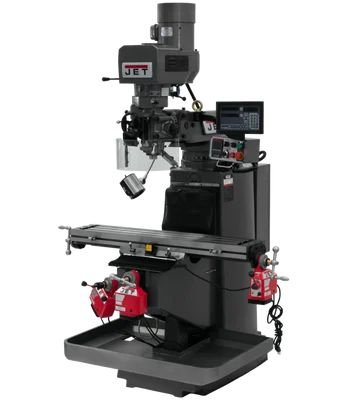

Jet JTM-949EVS Mill w/ NEWALL DP700 DRO & XYZ Powerfeeds (690539)

Description

Jet JTM-949EVS Mill w/ NEWALL DP700 DRO & XYZ Powerfeeds (690539) is a versatile vertical milling machine designed for precision and efficiency. Equipped with a Newall DP700 digital readout (DRO) for accurate X, Y, and Z axis control, this machine is perfect for both industrial and commercial applications.

KEY FEATURES AND BENEFITS:

• Powerful Performance: The 3HP motor delivers ample power for various cutting tasks.
• Precise Control: The Newall DP700 DRO ensures accurate measurements and positioning.
• Efficient Operation: X, Y, and Z power feeds streamline the milling process.
• Versatile Capabilities: Variable spindle speed (60-4,500 RPM) accommodates different materials and applications.
• Durable Construction: Built to withstand demanding working conditions.

SPECIFICATIONS:

• Motor: 3HP
• Spindle Taper: R-8
• Table Size: 9″ x 49″
• Spindle Speed: 60-4,500 RPM
• Power Feeds: X, Y, Z
• DRO: Newall DP700

HOW TO USE:

• Set up the workpiece: Securely clamp the workpiece to the machine table using appropriate clamps or vices.
• Select the desired spindle speed: Adjust the spindle speed according to the material being cut and the desired cutting depth.
• Zero the DRO: Set the DRO to zero at the starting point of the workpiece.
• Program the desired cuts: Input the cutting dimensions and paths into the DRO or machine controller.
• Engage power feeds: Activate the power feeds for automatic movement of the table.
• Monitor the cutting process: Observe the cutting process and make adjustments as needed.
• Coolant application: Apply coolant to the cutting tool to prevent overheating and improve tool life.

BENEFITS OF USING Jet JTM-949EVS Mill w/ NEWALL DP700 DRO & XYZ Powerfeeds (690539):

• Increased productivity: Due to power feeds and accurate DRO.
• Improved precision and repeatability: Thanks to the Newall DP700 DRO.
• Versatility: To handle a wide range of materials and applications.
• Enhanced operator comfort: With swing-away control box and ergonomic design.
• Long-lasting performance: Due to durable construction and automatic oiler.

FEATURES:

• 3HP motor
• Newall DP700 DRO
• X, Y, and Z power feeds
• R-8 spindle taper
• 9″ x 49″ table size
• Variable spindle speed (60-4,500 RPM)
• Swing-away control box
• Automatic oiler
• Certified Meehanite casting for rigidity
