Description

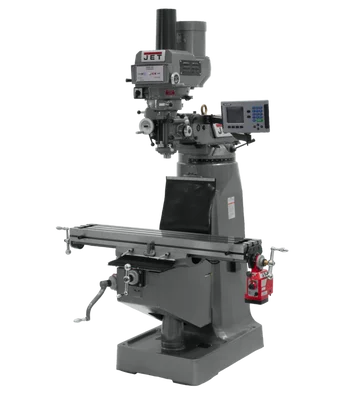

Jet JTM-4VS Milling Machine With 200S DRO 3AXIS Q & X-TPFA (690251) is a versatile and powerful vertical milling machine designed for professional metalworking applications. It’s also suitable for serious hobbyists who demand precision and reliability. Constructed with a durable Meehanite casting for vibration-free operation, the JTM-4VS boasts a precision-bored and honed milling head for consistent, high-quality cuts.
KEY FEATURES AND BENEFITS:
- Precision and Control: The ACU-RITE 200S DRO system provides accurate positioning on 3 axes (Quill and X-axis), while the variable speed control allows for optimal machining of various materials.
- Efficiency and Automation: The X-axis powerfeed automates material feeding during cutting, increasing productivity. The power drawbar simplifies tool changes, minimizing downtime.
- Durability and Rigidity: The heavy-duty construction, including Meehanite castings, precision-ground ways, and a one-piece quill pinion and shaft, ensures long-lasting performance and precise machining.
- Versatility: The JTM-4VS accommodates a wide range of tooling with its R8 spindle taper and spacious 9″ x 49″ worktable. The head swivels 90° left and right and 45° forward and backward for angled cuts.
SPECIFICATIONS:
- Motor: 3HP, 230/460V, 3-Phase (prewired for 230V)
- Spindle Taper: R8
- Quill Diameter: 3-3/8″
- Variable Speed Range: 60 – 42,000 RPM
- Table Longitudinal Travel: 34″
- Table Cross Travel: 12″
- Worktable Weight Capacity: 660 lbs.
- Overall Dimensions (L x W x H): 66″ x 63″ x 85″
- Weight: 2,420 lbs.
HOW TO USE:
- Installation: Follow the manufacturer’s instructions for proper setup and connection to the appropriate power source. Ensure the machine is level and securely anchored.
- Workpiece Setup: Mount your workpiece securely to the worktable using clamps or a vise. Ensure proper clearance between the workpiece and the cutting tool.
- Tool Selection and Installation: Select the appropriate cutting tool for your material and desired operation. Install the tool securely into the spindle taper and tighten the drawbar.
- Positioning and Settings: Use the handwheels or DRO system to precisely position the cutting tool and workpiece relative to each other. Set the desired spindle speed and feed rate based on the material and operation.
- Operation: Engage the power feed (if using) and start the spindle. Carefully guide the cutting tool into the workpiece to initiate machining. Monitor the process and make adjustments as needed.
- Safety: Always wear appropriate safety gear, including eye protection, gloves, and hearing protection. Ensure all guards are in place before operating the machine.
BENEFITS OF USING Jet JTM-4VS Milling Machine With 200S DRO 3AXIS Q & X-TPFA (690251):
- Accurate and Consistent Results: The rigid construction, precision components, and DRO system ensure precise machining and repeatable results.
- Increased Efficiency: Powerfeed and automatic features minimize operator intervention, boosting productivity.
- Versatility: Handles a wide range of materials and machining tasks with its powerful motor and variable speed control.
- Durability and Reliability: Built with high-quality materials for long-lasting performance and dependable operation.
FEATURES:
- Meehanite casting for vibration-free operation
- Precision-bored and honed milling head for accurate cuts
- ACU-RITE 200S DRO system for 3-axis positioning
- Variable speed control for optimal machining of different materials
- X-axis powerfeed for automated material feeding
- Power drawbar for easy tool changes
- R8 spindle taper for compatibility with a wide range of tooling
- Spacious 9″ x 49″ worktable
- Head swivels 90° left/right and 45° forward/backward for angled cuts
- Heavy-duty splined motor drive for efficient power transmission
- Three-stage power downfeed with automatic stop for precise depth control
- Heavy-duty spindle brake for quick stopping
- Precision-ground ways and adjustable gibs for smooth operation
- One-piece quill pinion and shaft for increased rigidity
- Internal spindle cooling system for improved tool life
