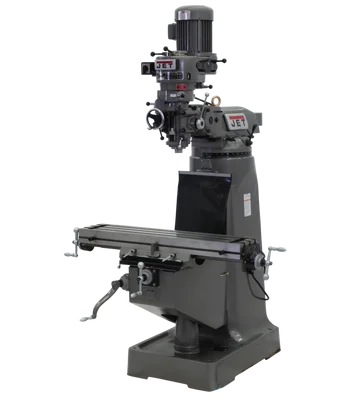

Jet JTM-2 Mill With Newall DP500 DRO With XY-Axis Powerfeeds (692195)

Description

The Jet JTM-2 Mill With Newall DP500 DRO With XY-Axis Powerfeeds (692195) is a robust and precise vertical milling machine designed to meet the demands of both professional workshops and serious hobbyists. Equipped with a Newall DP500 digital readout (DRO) system and power feeds on both the X and Y axes, this mill offers exceptional accuracy and efficiency in a wide range of milling operations.

KEY FEATURES AND BENEFITS:

• Precision Machining: The Newall DP500 DRO system provides real-time feedback on axis positions, ensuring accurate and repeatable cuts for superior results.
• Enhanced Productivity: Power feeds on the X and Y axes reduce operator fatigue and speed up machining processes, allowing you to get more done in less time.
• Durability and Stability: Constructed from certified Meehanite cast iron, the JTM-2 mill offers exceptional rigidity and vibration dampening for smooth operation and long-lasting performance.
• Versatile Milling Capabilities: The JTM-2 is well-suited for various milling tasks, including drilling, slotting, face milling, and more, making it a valuable asset in any workshop.
• Ease of Use and Maintenance: Features like one-shot lubrication and an included tool kit simplify maintenance, while the intuitive controls make operation straightforward.
• Industry-Leading Warranty: Backed by JET’s two-year warranty, you can trust in the quality and reliability of this milling machine.

SPECIFICATIONS:

• Model: Jet 692195 (also known as JT-692195)
• Table Size: 9″ x 42″
• Motor: 2 HP, 115/230V, 1Ph
• Spindle Taper: R-8
• Spindle Speeds: 8 speeds, 80-2,720 RPM (step pulley)
• Quill Travel: 5 inches
• Powerfeeds: X and Y-axis (20-2/7″ longitudinal travel with powerfeed)
• Head Tilt: 90° right/left, 45° front/back
• Weight: 2,200 lbs

HOW TO USE:

1. Setup: Securely mount your workpiece to the mill table using appropriate clamps or fixtures.
2. Tool Selection: Choose the correct milling cutter for your desired operation and install it in the spindle.
3. Zeroing: Using the DRO, set the zero position for each axis to establish your reference point.
4. Programming (Optional): If desired, you can program the DRO for specific cuts or patterns.
5. Operation: Engage the power feeds (if using) and carefully guide the cutting tool through the workpiece. Monitor the DRO for precise positioning.
6. Lubrication: Utilize the one-shot lubrication system to keep moving parts properly lubricated.
7. Maintenance: Regularly clean and inspect the mill for wear or damage.

BENEFITS OF USING THE Jet JTM-2 Mill With Newall DP500 DRO With XY-Axis Powerfeeds (692195):

• Improved Accuracy: The DRO ensures precise measurements and consistent results.
• Increased Efficiency: Power feeds and variable spindle speeds streamline your workflow.
• Reduced Operator Fatigue: Power feeds minimize manual effort, allowing for longer work sessions.
• Enhanced Versatility: The JTM-2’s capabilities enable a wide range of milling operations.
• Long-Term Reliability: The robust construction and quality components ensure years of reliable service.

FEATURES:

• Certified Meehanite Castings: Provides exceptional rigidity and vibration dampening.
• High Precision Class 7 Spindle Bearings: Ensures smooth and accurate spindle rotation.
• Internally Cooled Spindle Head: Prevents overheating for extended tool life.
• Three-Stage Power Downfeed with Auto Stop: Enhances control and precision during drilling operations.
• Heavy Duty Spindle Brake: Provides quick and reliable stopping for safety.
