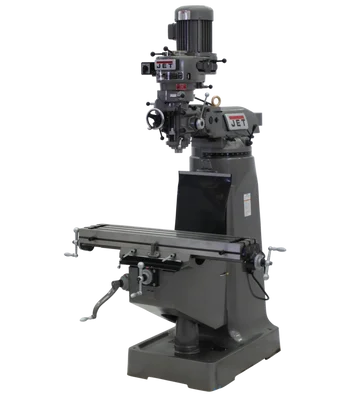

Jet JTM-2 Mill With Newall DP500 DRO With X-Axis Powerfeed (692194)

Description

The Jet JTM-2 Mill With Newall DP500 DRO With X-Axis Powerfeed (692194) is a meticulously engineered vertical milling machine designed to meet the demands of professional machinists and workshops. With its robust construction, precision components, and user-friendly features, this mill empowers you to achieve exceptional results in your milling projects.

KEY FEATURES AND BENEFITS:

• Rock-Solid Stability: Crafted from certified Meehanite® castings, the mill’s frame absorbs vibrations, ensuring smooth operation and precise cuts.
• Precision Spindle: High-precision Class 7 spindle bearings and an internal cooling system guarantee consistent accuracy and prolonged tool life.
• Effortless Automation: The X-axis powerfeed streamlines longitudinal movement, freeing you to focus on other aspects of your work while maintaining precise cutting.
• Intuitive Control: The Newall DP500 digital readout provides real-time position feedback, enabling you to make adjustments with confidence and accuracy.
• Enhanced Productivity: Features like the 3-stage power downfeed, heavy-duty spindle brake, and one-shot lubrication system optimize workflow and reduce downtime.

SPECIFICATIONS:

• Spindle Taper: R8
• Table Size (L x W): 9 x 42 inches
• Quill Diameter: 3-3/8 inches
• Number of Spindle Speeds: 8
• Spindle Speed Range: 80-2,720 RPM
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Table Travel (Longitudinal): 23-7/8 inches (20-2/7 inches with powerfeed)
• Table Travel (Cross): 12-1/2 inches
• Motor: 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H): 57 x 64 x 82 inches
• Weight: 2,200 lbs

HOW TO USE:

1. Preparation: Securely mount your workpiece on the mill table using clamps or vises.
2. Tooling: Select and install the appropriate milling cutter for your desired operation.
3. DRO Setup: Calibrate the Newall DP500 DRO to ensure accurate position readings.
4. Spindle Speed: Set the desired spindle speed based on the material and cutter type.
5. Feed Rate: Adjust the feed rate for optimal cutting performance and surface finish.
6. Engage Powerfeed (Optional): If using the X-axis powerfeed, engage it for automated longitudinal movement.
7. Milling Operation: Carefully guide the cutter through the workpiece, monitoring the DRO for precise positioning.
8. Completion: After completing the milling operation, disengage the powerfeed (if used) and carefully remove the workpiece.

BENEFITS OF USING THE Jet JTM-2 Mill With Newall DP500 DRO With X-Axis Powerfeed (692194):

• Increased Accuracy: Precision components and the DRO ensure consistent and repeatable results.
• Improved Efficiency: Automation features like the powerfeed streamline workflow and reduce manual effort.
• Versatility: Accommodates a wide range of milling cutters for diverse applications.
• Durability: Robust construction with Meehanite castings ensures long-lasting performance.

FEATURES:

• Meehanite® Castings
• Precision Bored and Honed Milling Head
• Large Diameter Chromed Quill
• High Precision Class 7 Spindle Bearings
• Internally Cooled Spindle Head
• Heavy Duty Splined Motor Drive
• One Piece Quill Pinion and Shaft
• Three Stage Power Downfeed with Automatic Stop
• Heavy Duty Spindle Brake
• Precision Hardened and Ground Ways
