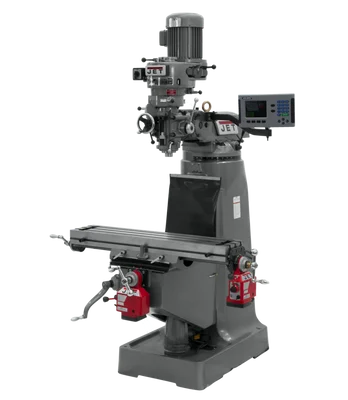

Jet JTM-2 Mill With ACU-RITE 203 DRO and XY-Axis Powerfeeds (690210)

Description

The Jet JTM-2 Mill With ACU-RITE 203 DRO and XY-Axis Powerfeeds (690210) is a workhorse designed for both professional machinists and dedicated hobbyists. Its robust construction, combined with precision engineering and convenient features, ensures accurate and efficient milling operations for a variety of projects.

KEY FEATURES AND BENEFITS:

• Rock-Solid Stability: The Meehanite casting provides a rigid foundation, minimizing vibrations and ensuring consistent accuracy during machining.
• Precision Machining: The precision-bored and honed milling head, along with high-precision Class 7 spindle bearings, guarantees smooth operation and tight tolerances.
• Efficient Operation: The X and Y-axis power feeds automate table movement, enhancing productivity and reducing operator fatigue.
• Precise Measurement: The included ACU-RITE 200S DRO provides real-time digital readouts for accurate positioning and repeatability.
• Enhanced Cooling: The internal coolant system (pump not included) helps maintain optimal operating temperatures, extending tool life and improving surface finish.

SPECIFICATIONS:

• Motor: 2 HP, 115/230V, 1Ph
• Spindle Speeds: 8 (80 – 2720 RPM)
• Spindle Taper: R-8
• Quill Diameter: 3-3/8 inches
• Table Size: 9 x 42 inches
• Table Travel: 23-7/8 inches (longitudinal), 12-1/2 inches (cross)
• Knee Travel: 14-1/2 inches
• Ram Travel: 13-3/8 inches
• Overall Dimensions: 57 x 64 x 82 inches

HOW TO USE:

1. Preparation: Securely mount your workpiece to the table using appropriate clamps or vises.
2. Tooling: Install the desired cutting tool into the spindle and tighten the drawbar.
3. DRO Setup: Zero the DRO axes to your reference point.
4. Speed and Feed Selection: Choose the appropriate spindle speed and feed rate for your material and tool.
5. Manual Operation: Use the handwheels to manually control the X, Y, and Z axes.
6. Power Feed Operation: Engage the power feeds for automatic movement along the X and Y axes.
7. Coolant (Optional): If using coolant, connect the pump to the internal coolant system.

BENEFITS OF USING THE Jet JTM-2 Mill With ACU-RITE 203 DRO and XY-Axis Powerfeeds (690210):

• Increased Productivity: Power feeds and DRO improve efficiency and reduce machining time.
• Improved Accuracy: Precise components and DRO ensure consistent results.
• Versatility: Accommodates a wide range of milling operations and materials.
• Durability: Meehanite construction and quality components ensure longevity.

FEATURES:

• Meehanite casting
• Precision-bored and honed milling head
• Chromed quill
• Class 7 spindle bearings
• Internally cooled spindle head
• Power downfeed with automatic stop
• Satin chrome finished dials
• One-shot lubrication system
• Way covers
• Included toolbox
