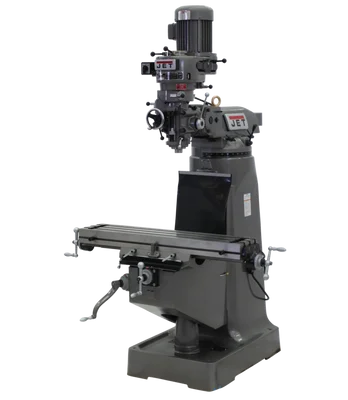

Jet JTM-2 Mill 3-Axis Newall DP500 DRO (Q) XY-Axis Powerfeeds (692199)

Description

The Jet JTM-2 Mill 3-Axis Newall DP500 DRO (Q) XY-Axis Powerfeeds (692199) is a versatile and robust milling machine designed for precision machining tasks. It boasts a 3-axis Newall DP500 DRO system for accurate positioning and X & Y-axis power feeds for efficient automated movement. Built on Meehanite® castings for stability and vibration dampening, this mill ensures smooth and precise machining operations.

KEY FEATURES AND BENEFITS:

• Precision and Accuracy: The Newall DP500 DRO and precision-ground components ensure accurate positioning and repeatable results.
• Efficient Operation: X & Y-axis power feeds automate movement, saving time and reducing operator fatigue.
• Stability and Durability: Meehanite® castings and a rigid construction provide excellent stability and vibration dampening, resulting in smooth and consistent machining.
• Versatility: Suitable for a wide range of applications, including tool and die making, prototyping, and general machining tasks.
• Ease of Use: Intuitive controls and user-friendly design make it easy to operate, even for those with limited experience.

SPECIFICATIONS:

• Digital Readout (DRO): Newall DP500
• Powerfeed: X and Y-Axis
• Table Size (L x W): 9″ x 42″
• Quill Diameter: 3-3/8″
• Spindle Speeds: 8 speeds, ranging from 80 to 2,720 RPM
• Spindle Taper: R-8
• Quill Down Feed Rates: .0015 – .003 – .006 IPR
• Spindle Travel: 5″
• Head Movement: 90° right & left, 45° front & back
• Motor: 2 HP, 115/230V, 1Ph
• Overall Dimensions (L x W x H): 57″ x 64″ x 82″
• Weight: 2,200 lbs

HOW TO USE:

1. Setup: Securely mount your workpiece on the mill table using appropriate clamping devices.
2. Tooling: Select and install the appropriate cutting tool for your specific machining operation.
3. DRO Setup: Calibrate the DRO system according to the manufacturer’s instructions.
4. Program (Optional): If desired, you can program the DRO to automate specific movements or sequences.
5. Operation: Manually control the mill using the handwheels or engage the power feeds for automated movement. Monitor the DRO to ensure accurate positioning.
6. Safety: Always wear appropriate safety gear, including eye and ear protection. Follow all safety guidelines and instructions in the user manual.

BENEFITS OF USING THE Jet JTM-2 Mill 3-Axis Newall DP500 DRO (Q) XY-Axis Powerfeeds (692199):

• Improved Accuracy: Precise positioning and repeatable results lead to high-quality finished parts.
• Increased Productivity: Automated power feeds save time and reduce operator fatigue.
• Enhanced Versatility: The mill’s capabilities allow you to tackle a wide range of machining tasks.
• User-Friendly: Intuitive controls make it easy to operate for both beginners and experienced machinists.

FEATURES:

• Built-in internal coolant tank
• Tolerance test sheet included
• One-shot lubrication system
• Way covers
• Drawbar
• Toolbox with tools
