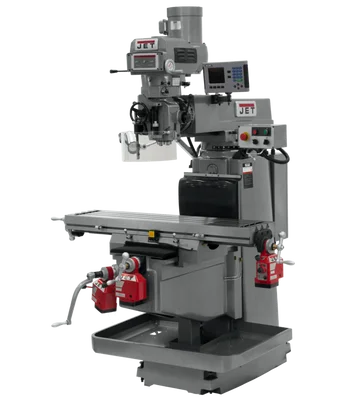

Jet JTM-1254VS Mill w/ ACU-RITE 203 DRO X,Y& Z Powerfeeds (698053)

Description

Jet JTM-1254VS Mill w/ ACU-RITE 203 DRO X, Y & Z Powerfeeds (698053) is a robust and precise vertical milling machine designed for light to medium-duty applications. Equipped with ACU-RITE 203 DRO for accurate measurements and power feeds on all axes, this machine offers efficient and controlled operation. Built with certified Meehanite castings and precision-engineered components, it delivers durability and performance.

KEY FEATURES AND BENEFITS:

• Certified Meehanite Castings: Ensures machine strength and longevity.
• ACU-RITE 203 DRO: Provides precise measurements for accurate work.
• X, Y, and Z Power Feeds: Offers efficient and controlled operation.
• Precision Ground Ways and Table: Guarantees smooth and accurate movement.
• Automatic Lubrication: Reduces maintenance and extends component life.

SPECIFICATIONS:

• Spindle Taper: NST #40
• Table Size: 12″ x 54″
• Spindle Speeds: 80-3,800 RPM
• X-Axis Travel: 33-7/8″
• Y-Axis Travel: 15-1/3″
• Z-Axis Travel: 19-1/4″
• Motor: 5 HP, 230/460V, 3 Ph
• Weight: 3969 lbs

HOW TO USE:

1. Set up the workpiece: Securely clamp the workpiece to the machine table using appropriate clamps and fixtures.
2. Select the desired spindle speed: Adjust the spindle speed to match the material and cutting tool being used.
3. Engage power feeds: Activate the power feeds for automatic movement of the table in the X, Y, and Z axes.
4. Perform milling operations: Lower the spindle and begin milling the workpiece according to the desired dimensions and depth of cut.
5. Monitor and adjust: Continuously monitor the cutting process and make adjustments as needed to maintain accuracy and prevent tool breakage.
6. Coolant application: If necessary, apply coolant to the cutting tool to prevent overheating and improve chip removal.
7. Clean up: After completing the milling operation, clean the machine and remove chips to ensure optimal performance for the next use.

BENEFITS OF USING Jet JTM-1254VS Mill w/ ACU-RITE 203 DRO X, Y & Z Powerfeeds:

• Increased productivity: Power feeds and accurate controls enhance efficiency.
• Improved precision: ACU-RITE DRO and precision components ensure accurate results.
• Reduced downtime: Automatic lubrication minimizes maintenance requirements.
• Versatility: Handles a wide range of milling applications.
• Durability: Built to last with certified Meehanite castings.

FEATURES:

• Certified Meehanite castings
• ACU-RITE 203 DRO
• X, Y, and Z Power Feeds
• Precision ground ways and table
• Automatic lubrication
• Quick spindle feed nut
• Three-stage power downfeed with automatic stop
• Heavy-duty spindle brake
• Adjustable gibs throughout
• CSA/CUS certified
• Spindle guard
• Spindle brake
• LED machine lamp
• Dual locks on all moveable surfaces
• Chip pan
• Draw bar
• Tool box with tools
