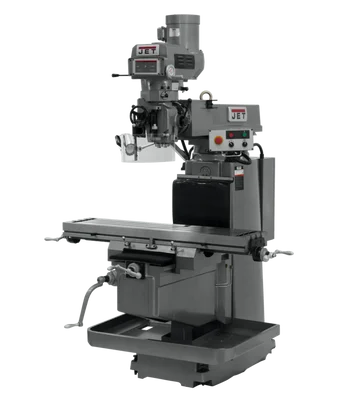

Jet JTM-1254VS 3PH 230/460V Vertical Mill Machine (690025)

Description

The Jet JTM-1254VS 3PH 230/460V Vertical Mill Machine (690025) is a heavy-duty machine designed for professional applications that demand precision and durability. It features a variety of features that make it a versatile and productive machine, including:

KEY FEATURES AND BENEFITS:

• Rigid Construction: Certified Meehanite® castings provide a stable base for vibration-free operation and long life, ensuring consistent results.
• Precision Machining: The precision bored and honed milling head, along with high-precision Class 7 spindle bearings, minimize runout for accurate machining.
• Variable Speed Control: The machine offers a wide variable speed range of 80 to 3,800 RPM, allowing you to tailor cutting speeds to different materials and applications.
• Precise Depth Control: The three-stage power downfeed with automatic stop provides precise control over quill travel depth, for consistent results in repetitive tasks.
• User-Friendly Features: Automatic lubrication every 180 minutes reduces maintenance downtime, while the quick-nut spindle feed allows for easy quill adjustments. A JET-exclusive casting design simplifies machine leveling without lifting.
• Versatility and Durability: Three precision-ground T-slots and Turcite B on the X & Y Axis provide versatility for workholding setups, while adjustable gibs throughout the machine ensure long-lasting precision.
• Safety and Convenience: The spindle guard protects operators, and the heavy-duty spindle brake offers quick stopping power. An LED machine lamp illuminates the work area, and standard equipment includes a chip pan, drawbar, and toolbox with tools for added convenience.

SPECIFICATIONS:

• Product: Jet JTM-1254VS 3PH 230/460V Vertical Mill Machine (690025)
• Motor Power: 5 HP
• Voltage: 230/460V
• Speed Range: 80-3,800 RPM
• Construction: Certified Meehanite® Castings
• Precision Ground T-Slots: 3
• Axis: X & Y with Turcite B

HOW TO USE:

• Step 1: Ensure the mill is placed on a stable, level surface and properly secured using the provided leveling tools.
• Step 2: Connect the machine to a 230/460V three-phase power source that matches the motor specifications.
• Step 3: Mount the workpiece securely on the table using appropriate clamps or a vise.
• Step 4: Select the desired spindle speed within the 80-3,800 RPM range, adjusting the speed to suit the material being machined.
• Step 5: Utilize the quick-nut spindle feed to make easy quill adjustments for your specific task.
• Step 6: Use the three-stage power downfeed for precise control over quill travel depth, and begin your machining operation.
• Step 7: After completing your task, turn off the machine, clean the chip pan, and perform any necessary maintenance to ensure the mill remains in good condition.

BENEFITS OF USING Jet JTM-1254VS 3PH 230/460V Vertical Mill Machine (690025):

• High precision and durability for professional-grade machining tasks.
• Wide variable speed range for versatile material handling.
• User-friendly features that enhance efficiency and reduce downtime.
• Robust construction ensures stability and minimizes vibration during operation.
• Comprehensive safety features protect operators and facilitate ease of use.

FEATURES:

• Certified Meehanite® castings for a stable and vibration-free base.
• High-precision Class 7 spindle bearings for minimal runout and accurate machining.
• Automatic lubrication system to reduce maintenance requirements.
• Quick-nut spindle feed for easy quill adjustments and quick tool changes.
• Three precision-ground T-slots for versatile workholding setups.
• Turcite B on the X & Y Axis for smooth movement and long-lasting precision.
• Heavy-duty spindle brake and LED machine lamp for added safety and convenience.
