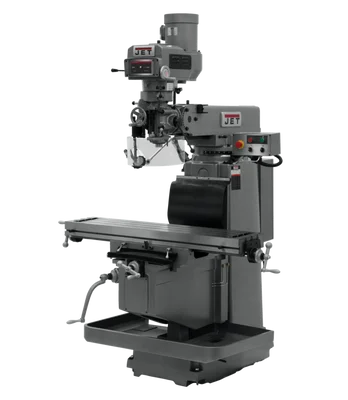

Jet JTM-1254RVS Mill with X & Y Powerfeeds (698086)

Description

Jet JTM-1254RVS Mill with X & Y Powerfeeds (698086) is a heavy-duty vertical milling machine designed for professional machinists and serious hobbyists. It combines durability, strength, and precision engineering to deliver high-quality results.

KEY FEATURES AND BENEFITS

• Durable & Precise: Certified Meehanite castings and precision-ground components ensure long-lasting accuracy for high-quality results.
• Variable Speed Control: Tackle various materials with ease using the variable speed spindle (80-3,800 RPM).
• Large Work Capacity: The spacious table (12″ x 54″) accommodates bigger workpieces for increased efficiency.
• Automated Efficiency: X and Y-axis power feeds enable automated operation, streamlining production workflows.
• Easy to Use: Features like automatic lubrication and quick nut spindle feed simplify operation and maintenance.
• R-8 Spindle Taper: Offers compatibility with a wide range of tooling for diverse applications.
• Heavy-Duty Construction: Built to handle demanding tasks with a powerful 5 HP, 3-phase motor (230/460V).

SPECIFICATIONS

• Spindle Taper: R-8
• Table Size (L x W): 12″ x 54″
• Variable Speed Range: 80-3,800 RPM
• Quill Travel: 5″
• X-Axis Travel: 15-1/3″ (33-7/8″ with powerfeed)
• Y-Axis Travel: 28-1/4″
• Column Width: 14-1/4″
• Overall Dimensions (L x W x H): 92-1/8″ x 79-7/8″ x 104-1/4″
• Weight: 3,969 lbs.
• Motor: 5 HP, 3-phase (230/460V)
• Warranty: 2 Years

HOW TO USE

1. Installation: Secure the milling machine on a level and stable surface with appropriate electrical connections (consult a qualified electrician for 3-phase power).
2. Workpiece Setup: Secure your workpiece to the table using clamps or a vise, ensuring proper alignment and safety precautions.
3. Tooling Selection: Choose the appropriate cutting tool based on the material and desired operation (refer to manufacturer’s recommendations for specific tools).
4. Speed and Feed Adjustments: Set the variable speed and power feed rates (X & Y) according to the material and desired cutting depth.
5. Operation: Engage the spindle and power feeds (if applicable) to initiate milling. Utilize the controls for precise movement along the X, Y, and Z axes.
6. Safety: Always wear proper safety gear (eye protection, gloves, etc.) and follow safe operating procedures while using the milling machine.

BENEFITS OF USING Jet JTM-1254RVS Mill with X & Y Powerfeeds

• Increased Production Efficiency: The X and Y-axis power feeds enable automated milling processes, saving time and effort.
• High-Quality Results: The combination of durable construction, precision components, and variable speed control ensures accurate and consistent milling operations.
• Versatility: The R-8 spindle taper and wide range of compatible tooling allow for tackling various metalworking projects.
• User-Friendly Operation: Features like automatic lubrication and quick nut spindle feed simplify operation and maintenance.
• Heavy-Duty Performance: The robust design and powerful motor handle demanding milling tasks with ease.

FEATURES

• Certified Meehanite castings for vibration dampening and stability
• Hardened and ground table for precision work
• Chrome lead screws on X and Y axes for smooth travel
• Turcite B on X and Y axes for wear resistance
• Automatic lubrication system for extended machine life
• Three-stage power downfeed with automatic stop for accurate depth control
• Large diameter quill is chromed
• High precision Class 7 spindle bearing
• Spindle Head is Internally Cooled
• Locks on all moveable surfaces
• Adjustable gibs throughout
• Way covers
• Draw Bar
• Tool Box with Tools
