Description

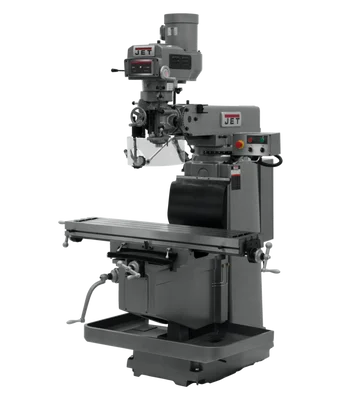

Jet JTM-1254RVS Mill w/ NEWALL DP700 DRO & XYZ Powerfeeds (698130) is a heavy-duty vertical milling machine designed for machinists who require both precision and durability. This machine features a cast iron base for enhanced stability, a variable speed spindle motor for versatility across different materials, and a digital readout (DRO) system for accurate positioning. Power feeds on the X, Y, and Z axes facilitate automated movement, increasing operational efficiency.
KEY FEATURES AND BENEFITS
- Durable Construction: Certified Meehanite castings dampen vibration and ensure rigidity for accurate results.
- Precision Engineering: Precision-bored head, high-precision bearings, and hardened ways and table deliver exceptional accuracy.
- Variable Speed Control: Adapt spindle speed (80-3,800 RPM) to match different materials and applications.
- Automatic Lubrication: Reduces maintenance by automatically lubricating the machine every 180 minutes.
- Power Feeds on X, Y, and Z Axes: Automate movement for repetitive tasks and improve efficiency.
- Digital Readout (DRO): Ensures precise positioning on all three axes for repeatable cuts.
- Easy Leveling: The JET exclusive casting allows for simple machine leveling without lifting.
- Convenience Features: LED machine lamp, dual locks on movable surfaces, chip pan, drawbar, and toolbox with tools enhance usability.
SPECIFICATIONS
- Model Number: JTM-1254RVS
- Spindle Taper: R-8
- Table Size: 12″ x 54″
- Spindle Travel: 5″
- Range of Spindle Speeds: 80-3,800 RPM
- Motor: 5 HP, 230/460V, 3-Phase
- Weight: 3,969 lbs
HOW TO USE
- Installation: Secure the machine to a stable and level surface. Refer to the user manual for specific installation instructions.
- Setup: Mount your desired cutting tool in the spindle using the drawbar and collets.
- Adjustments: Set the spindle speed, feed rates, and depth of cut based on your material and project requirements. Utilize the DRO system for precise positioning.
- Operation: Power on the machine and engage the desired axis (X, Y, or Z) for manual or power-fed movement. The LED lamp provides optimal illumination of the work area.
- Safety: Always wear safety glasses and gloves when operating the machine. Ensure all guards are in place before starting.
BENEFITS OF USING Jet JTM-1254RVS Mill w/ NEWALL DP700 DRO & XYZ Powerfeeds (698130)
- High-Quality Components: Achieve precise cuts and finishes for demanding projects.
- Increased Efficiency: Automate repetitive tasks with power feeds and improve workflow.
- Reduced Maintenance: Automatic lubrication minimizes downtime and maintenance needs.
- User-Friendly Features: The DRO system, LED lamp, and easy leveling system enhance usability.
- Durable Construction: Built to last with robust materials and precision engineering.
FEATURES
- Certified Meehanite castings
- Precision-bored and honed milling head
- High-precision Class 7 spindle bearings
- Quick-change spindle taper
- Three-stage power downfeed with automatic stop
- Heavy-duty spindle brake
- Precision hardened and ground ways and table
- Three precision-ground T-slots
- Turcite B on X & Y axes
- Adjustable gibs throughout
- CSA/CUS certified
- Spindle guard
- Spindle brake for rapid stopping
- Automatic lubrication
- Quick nut for spindle feed
- JET exclusive new casting for easy leveling
- Two 115V outlets on electrical box for power feeds
- LED machine lamp
- Dual locks on all movable surfaces
- Chip pan
- Drawbar
- Toolbox with tools
