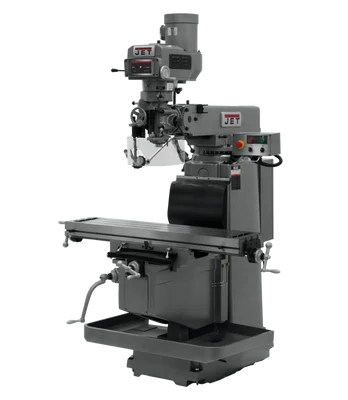

Jet JTM-1254RVS Mill w/ ACU-RITE 303 3X (Q) DRO & X Powerfeed (698175)

Description

Jet JTM-1254RVS Mill w/ ACU-RITE 303 3X (Q) DRO & X Powerfeed (698175) is a precision-built vertical milling machine designed for efficiency and durability. Equipped with an Acu-Rite 303 3X (Q) DRO and X-axis power feed, this machine offers accurate measurements and smooth operation. Ideal for various metalworking tasks.

KEY FEATURES AND BENEFITS

• Variable Speed: Offers a wide range of spindle speeds (80-3,800 RPM) for versatile applications.
• Acu-Rite 303 3X (Q) DRO: Provides precise readings for the quill axis, enhancing accuracy.
• X-Axis Power Feed: Improves efficiency and reduces operator fatigue.
• Certified Meehanite Castings: Ensures durability and stability.
• Automatic Lubrication: Reduces maintenance requirements.
• Quick Nut Spindle Feed: Facilitates easy adjustments.
• Heavy-Duty Construction: Built for demanding tasks.

SPECIFICATIONS

• Table Size: 12″ x 54″
• Spindle Taper: R-8
• Quill Diameter: 4-1/8″
• Head Movement: 90° right and left, 45° forward and back
• Max Distance Spindle to Table: 23″
• Spindle Speed Range: 80-3,800 RPM
• Quill Down Feed Rates: .0015–.003–.008 IPR

HOW TO USE

• Set Up the Machine: Ensure the machine is securely placed on a level surface. Connect the power cord to a grounded outlet.
• Adjust Spindle Speed: Select the desired spindle speed based on the material and cutting tool.
• Zero the DRO: Set the digital readout to zero for accurate measurements.
• Secure Workpiece: Clamp the workpiece firmly to the machine table using a vise or clamps.
• Engage Power Feed (if applicable): Turn on the power feed for automatic table movement.
• Start Milling: Lower the spindle into the workpiece and begin the milling process.
• Monitor Cutting Depth and Feed Rate: Adjust cutting parameters as needed for optimal results.
• Coolant Application: Use coolant to prevent overheating and improve tool life.
• Clean Up: Remove chips and debris after completing the milling operation.

BENEFITS OF USING Jet JTM-1254RVS Mill w/ ACU-RITE 303 3X (Q) DRO & X Powerfeed (698175):

• Increased Productivity: The X-axis power feed and variable speed options enhance efficiency.
• Improved Accuracy: The Acu-Rite DRO ensures precise measurements and cuts.
• Reduced Operator Fatigue: Power feed and ergonomic design minimize physical strain.
• Durable Construction: Built to withstand heavy-duty use and last for years.
• Versatile Applications: Suitable for a wide range of metalworking tasks.

FEATURES

• Variable Speed
• Acu-Rite 303 3X (Q) DRO
• X-Axis Power Feed
• Certified Meehanite Castings
• Automatic Lubrication
• Quick Nut Spindle Feed
• Heavy-Duty Construction
• R-8 Spindle Taper
• 12″ x 54″ Table Size
• 90° Head Movement (Right and Left)
• 45° Head Movement (Forward and Back)
