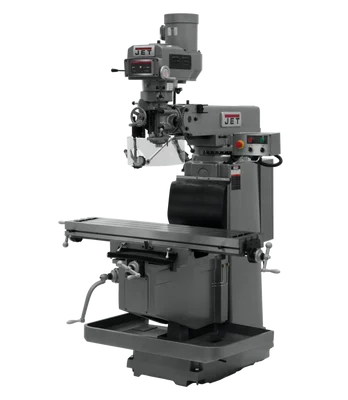

Jet JTM-1254RVS Mill w/Acu-Rite 303 3X (Q) DRO (698176)

Description

The Jet JTM-1254RVS Mill w/Acu-Rite 303 3X (Q) DRO (698176) is a heavy-duty vertical milling machine built for precision and durability. Ideal for professional machinists and machine shops, this machine delivers high-quality results for a wide range of applications.

KEY FEATURES AND BENEFITS:

• Durable Construction: Cast iron construction ensures stability and vibration dampening for accurate machining.
• Variable Speed Control: Allows for optimal cutting speeds for different materials and applications (80-3,800 RPM).
• Large Table Size: The 12″ x 54″ table provides ample workspace for handling a variety of parts.
• R-8 Spindle Taper: Offers compatibility with a wide selection of tooling.
• Digital Readout (ACU-RITE 300S): Provides precise positioning for accurate machining.
• Powerfeed (X-Axis): Enhances feed control and efficiency.
• Automatic Lubrication: Reduces maintenance and extends machine life.
• Quick Nut Spindle Feed: Allows for faster setup and operation.
• Air Power Drawbar: Simplifies tool changes for increased productivity.
• User-Friendly Design: Includes features like an LED machine lamp, dual locks on movable surfaces, and an easy-to-access toolbox.

SPECIFICATIONS:

• Product: Jet JTM-1254RVS Mill w/Acu-Rite 303 3X (Q) DRO (698176)
• Spindle Taper: R-8
• Table Size: 12″ x 54″
• Spindle Speeds: 80 – 3,800 RPM
• Digital Readout: ACU-RITE 300S
• Powerfeed: X-Axis
• Power Draw Bar: Pneumatic
• Motor: 5 HP, 230/460V, 3 Phase
• Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″ (LxWxH)
• Weight: 3969 lbs.

HOW TO USE:

• Step 1: Place the milling machine on a stable, level surface and secure it using the provided mounting hardware.
• Step 2: Connect the machine to a suitable 230/460V three-phase power source, ensuring the voltage matches the prewired configuration.
• Step 3: Adjust the table to the desired height and secure the workpiece using clamps on the T-slots for stability.
• Step 4: Select the appropriate spindle speed from the range of 80-3,800 RPM based on the material and milling operation.
• Step 5: Use the powerfeed to automate the X-axis feed during milling operations for consistent results.
• Step 6: Utilize the pneumatic power drawbar for quick and easy tool changes.
• Step 7: After milling, turn off the machine, clean the work area, and check the automatic lubrication system for maintenance.

BENEFITS OF USING Jet JTM-1254RVS Mill w/Acu-Rite 303 3X (Q) DRO (698176):

• Delivers precise and accurate milling for professional applications.
• Handles a variety of materials, including metals and plastics.
• Offers versatile features like a large table and multiple speed options for different milling tasks.
• Robust construction ensures long-lasting performance and reliability.
• User-friendly design with safety features and convenient controls.

FEATURES:

• Certified cast iron construction for stable and vibration-free operation.
• Variable speed control with a range of 80-3,800 RPM for precise control.
• Large 12″ x 54″ table with T-slots for secure workpiece clamping.
• R-8 spindle taper for compatibility with a variety of tooling.
• ACU-RITE 300S digital readout for precise positioning.
• X-axis powerfeed for enhanced feed control.
• Automatic lubrication system for reduced maintenance.
• Quick nut spindle feed for fast adjustments.
• Pneumatic power drawbar for easy tool changes.
• LED machine lamp for improved visibility.
• Dual locks on movable surfaces for added security.
• Spindle guard and heavy-duty spindle brake for enhanced safety.
• Meets CSA/CUS electrical safety standards.
